Specifications | ||
Item No. | MPHG42 | |
Item Name |

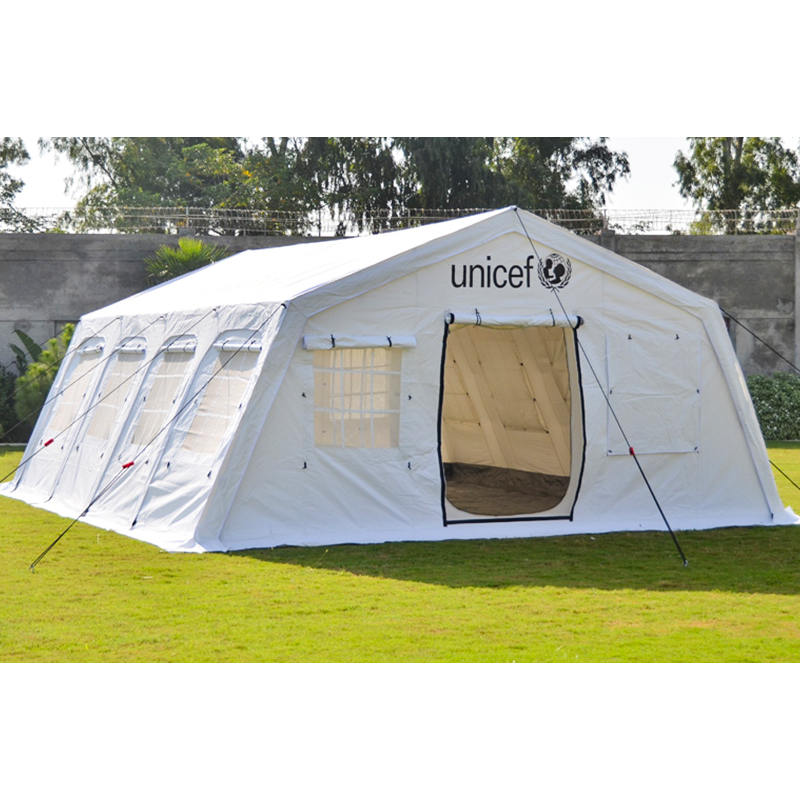

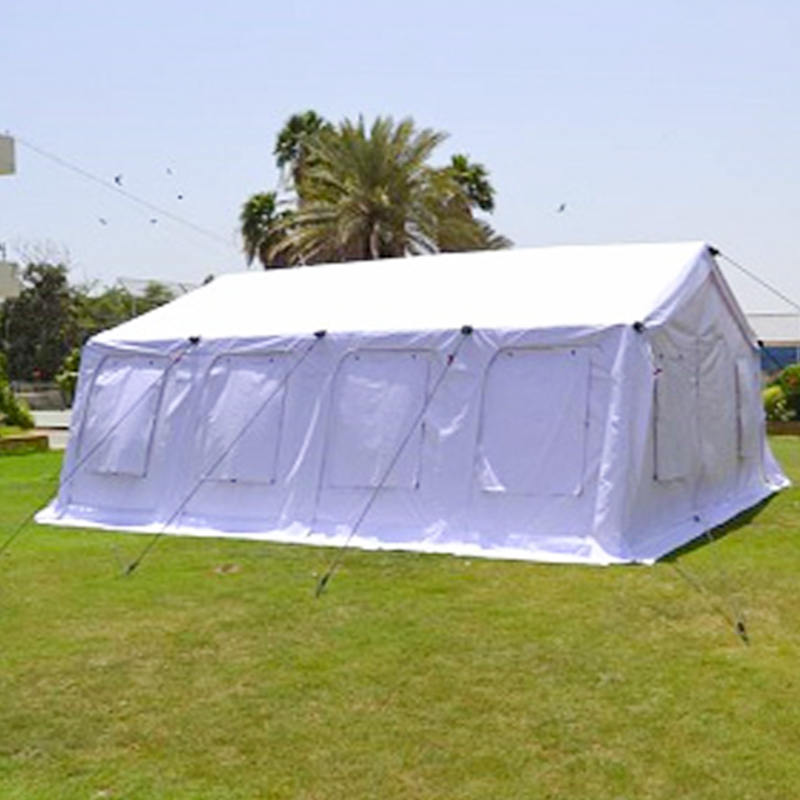

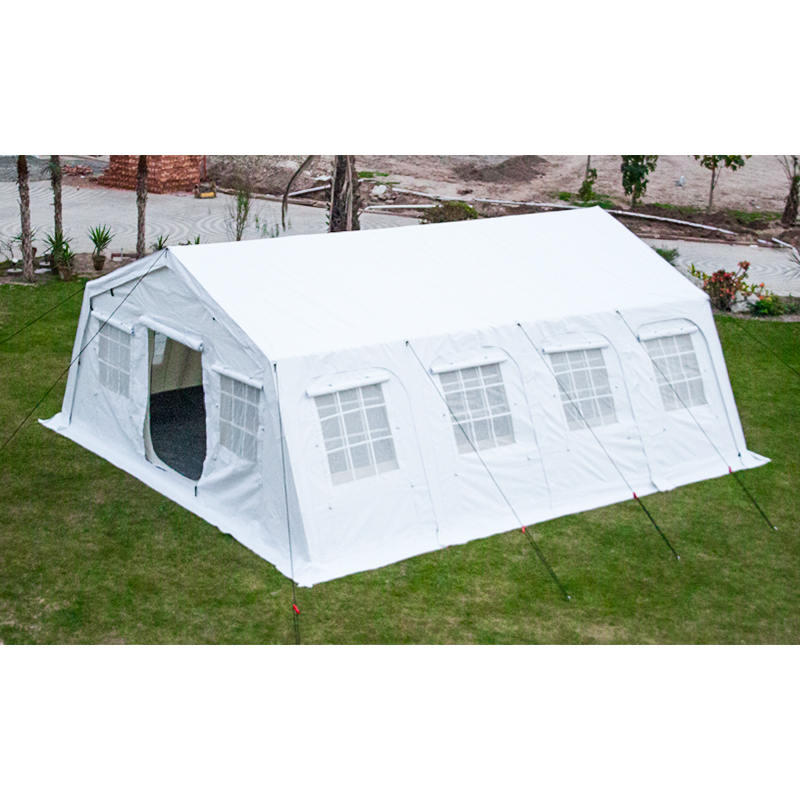

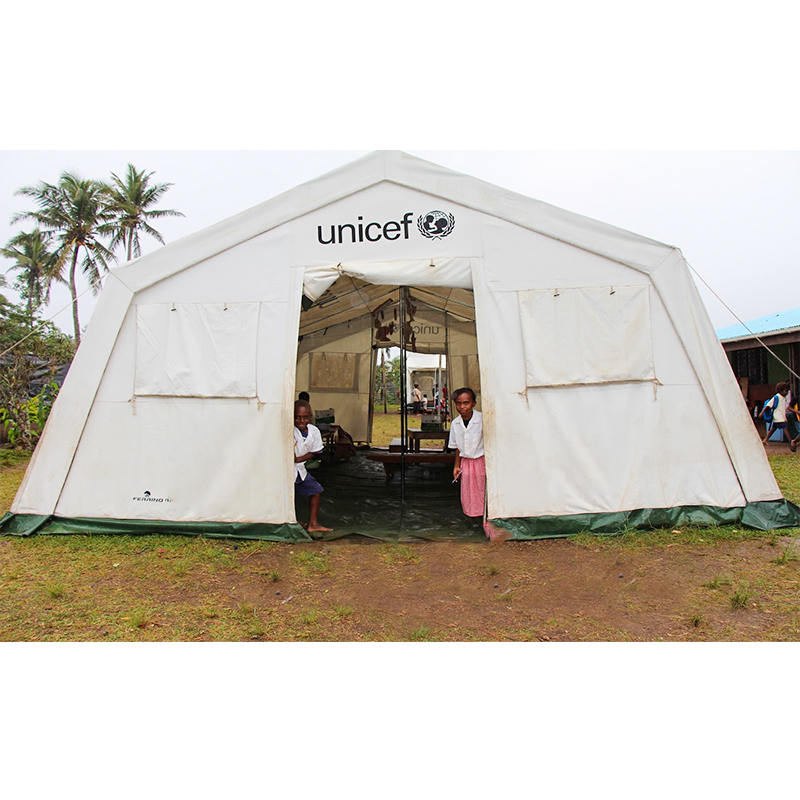

Multipurpose tent Huggy Tent 42 UNICEF standard |
|
Dimensions | Outer tent | |
Total size | 7.00 x 6.00 m | |
Centre height | 2.95 m | |
Wall Height | 2.10 m | |

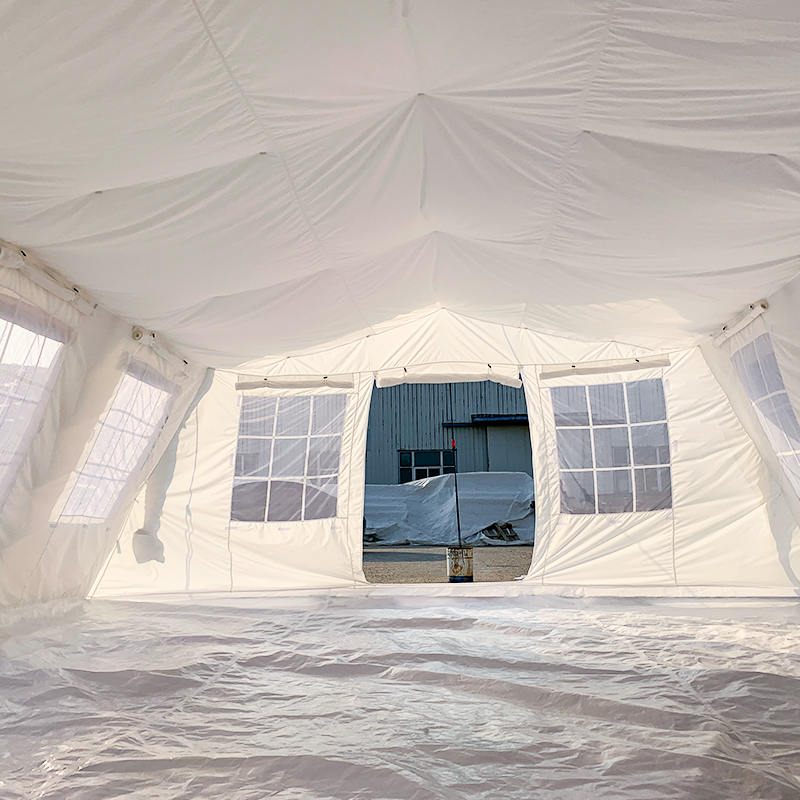

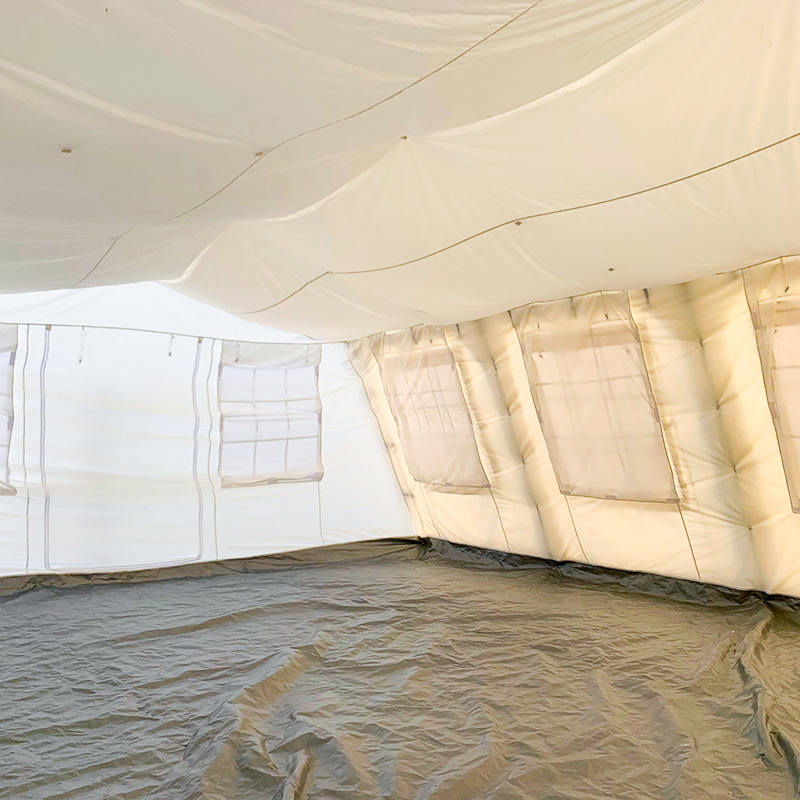

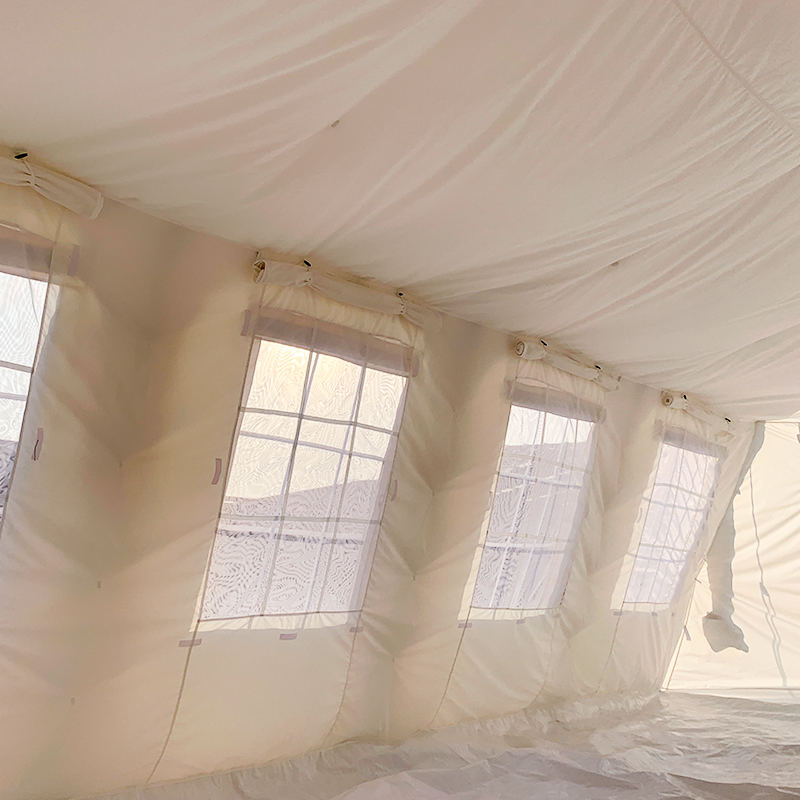

Inner tent | ||
Centre height | 2.40 m | |
Wall Height | 1.95 m | |
Specification | Outer tent | 450 - 455 gsm fire retardant* PVC coated fabric 5000 mm, natural white |
Inner tent | 120 gsm Polycotton, natural white | |
Groundsheet | 190 gsm Polyethylene (HDPE), PVC fabric, sewn in bathtub, light grey/natural white | |

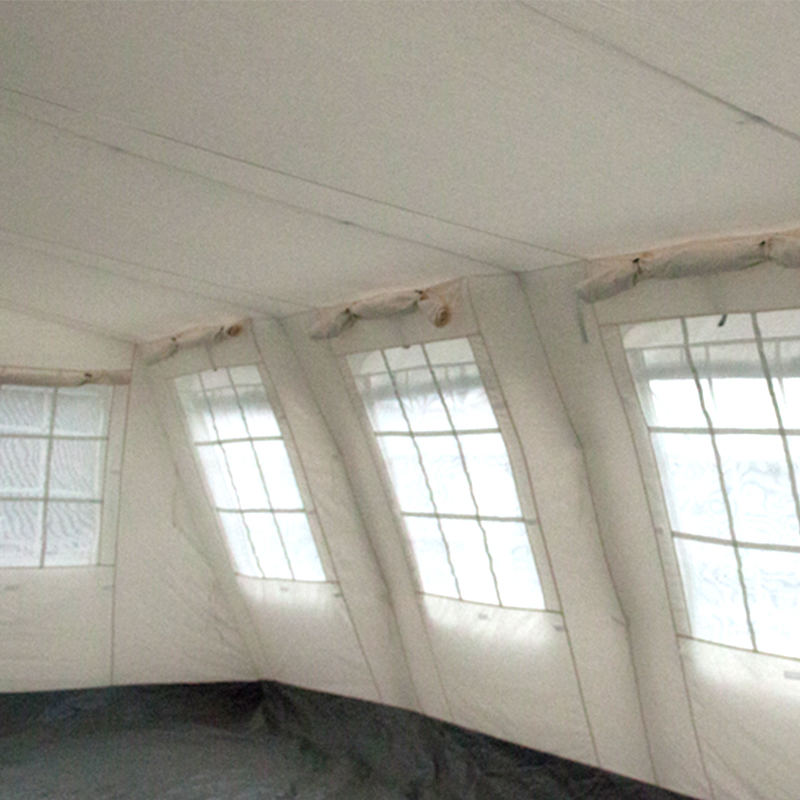

Windows |

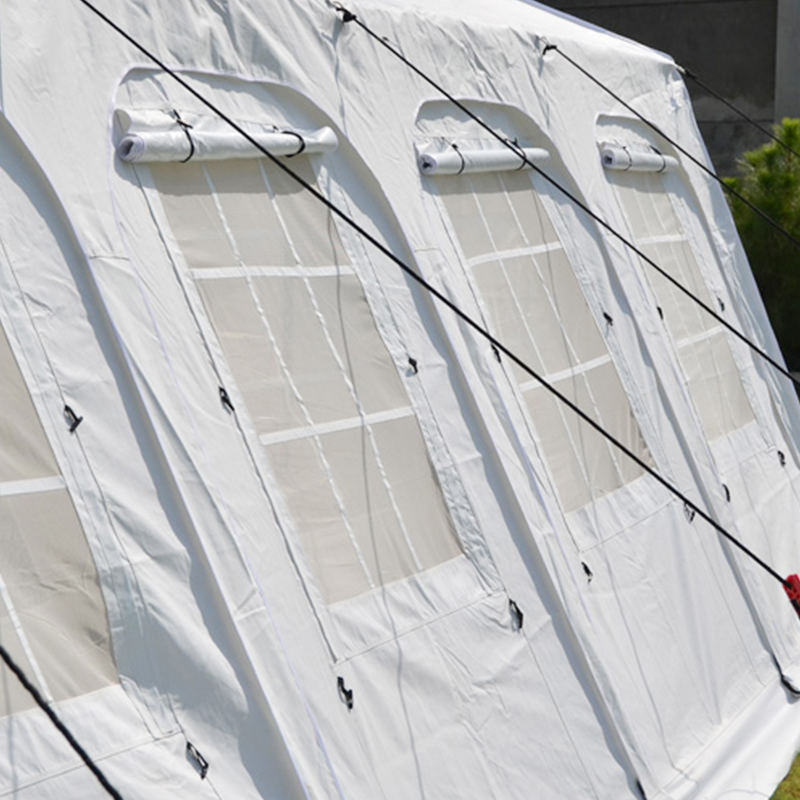

Eight windows on long sidewalls 0.90 x 1.10 m with PVC stripes reinforcement Four windows on short sidewalls 0.85 x 1.00m with PVC stripes reinforcement |
|

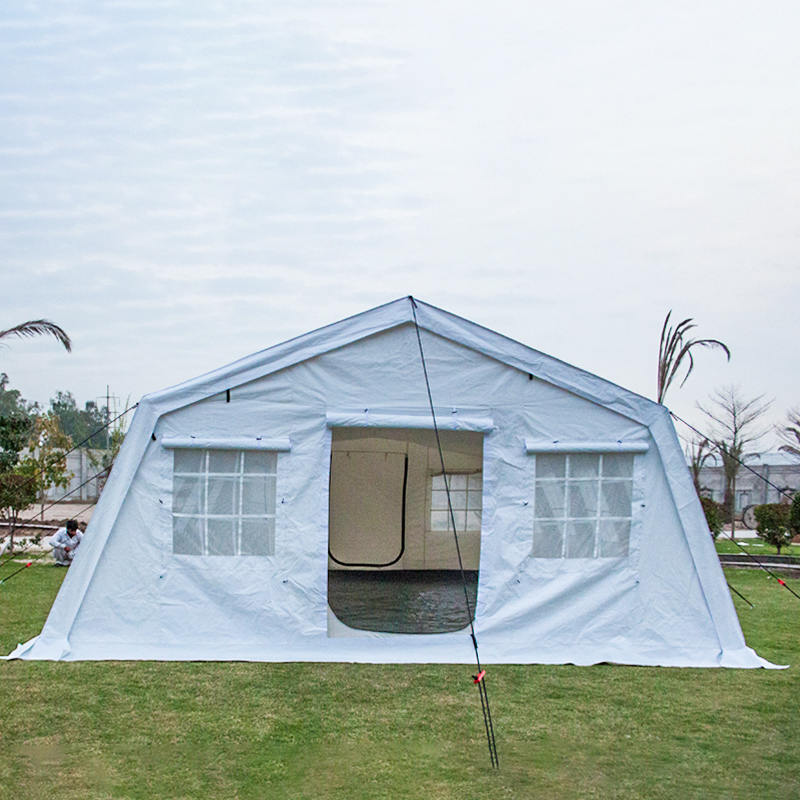

Doors | One door on each gable end side 1.20 x 2.00 m, closed with velcro | |
Groundsheet | Double stitched to inner tent, 100 - 200 mm above the ground | |
Main frame |
46 aluminum pipes 37 mm diameter, 2 mm thick, silver / 15 steel connectors, silver 14 steel connectors with base plates, silver / five hanging steel connectors, two hooks on each end, silver |
|
Seams | All seams are double-stitched with welded main roof seams | |
Packing / Shipping | Packing | All contents are packed in a wooden box. |
Dimensions | 110 x 94 x 56 cm / 200 x 46 x 53 cm | |
Weight | 260 Kg | |
Volume Packed | 1.067 Cbm | |
Loading | 20' 24 Unit | 40' 50 Unit | 40' HCL 55 Unit |
