| Specifications | ||
| Item No. | MPHG24 | |
| Item Name |
Multipurpose tent Huggy Tent 24 UNICEF standard |
|

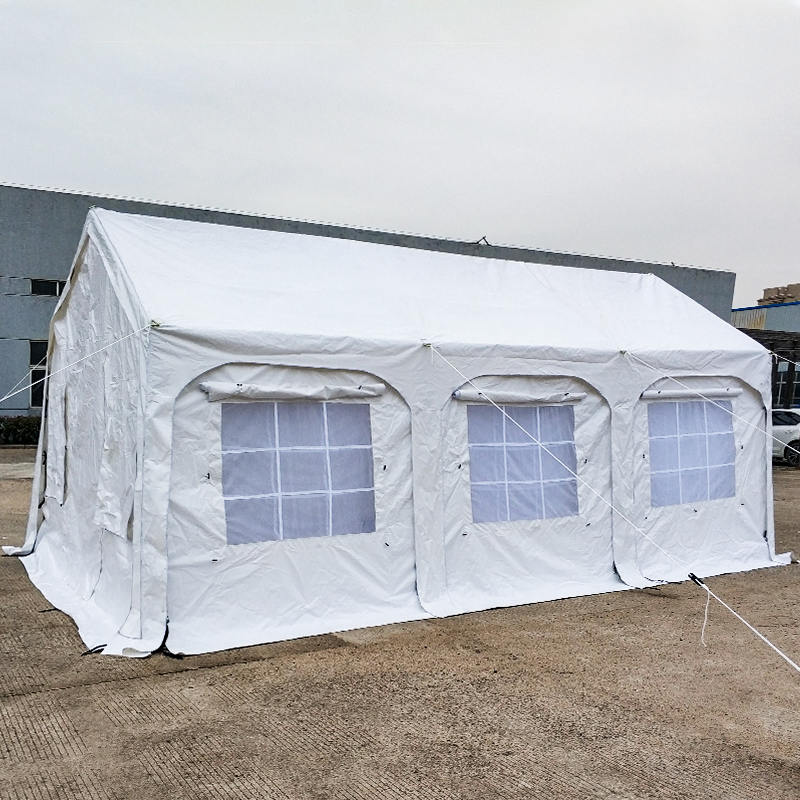

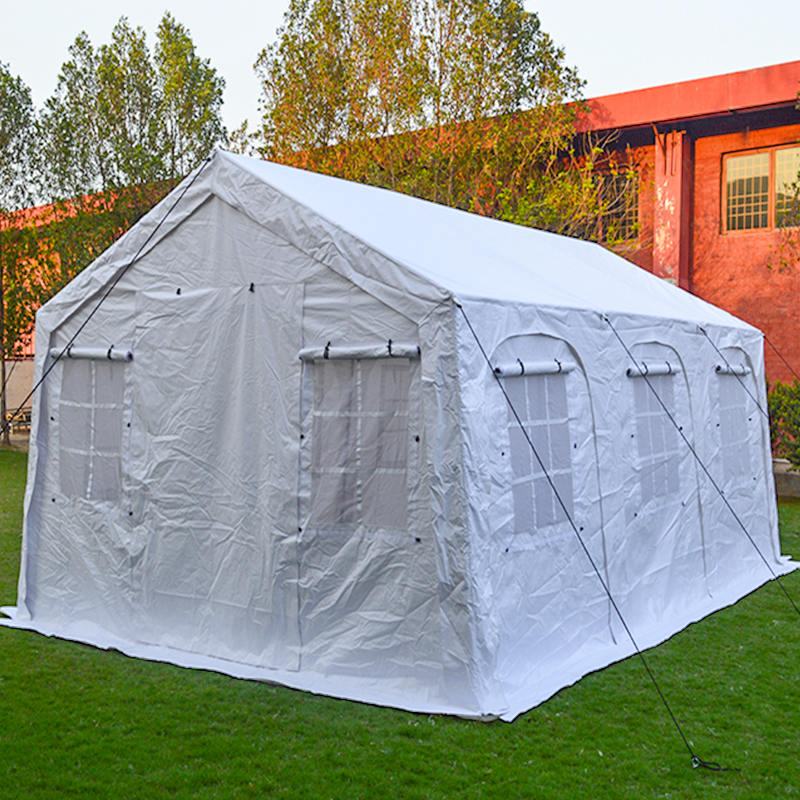

| Dimensions | Outer tent | |
| Total size | 6.00 x 4.00 m | |
| Centre height | 2.80 Meter | |
| Wall Height | 1.95 Meter | |

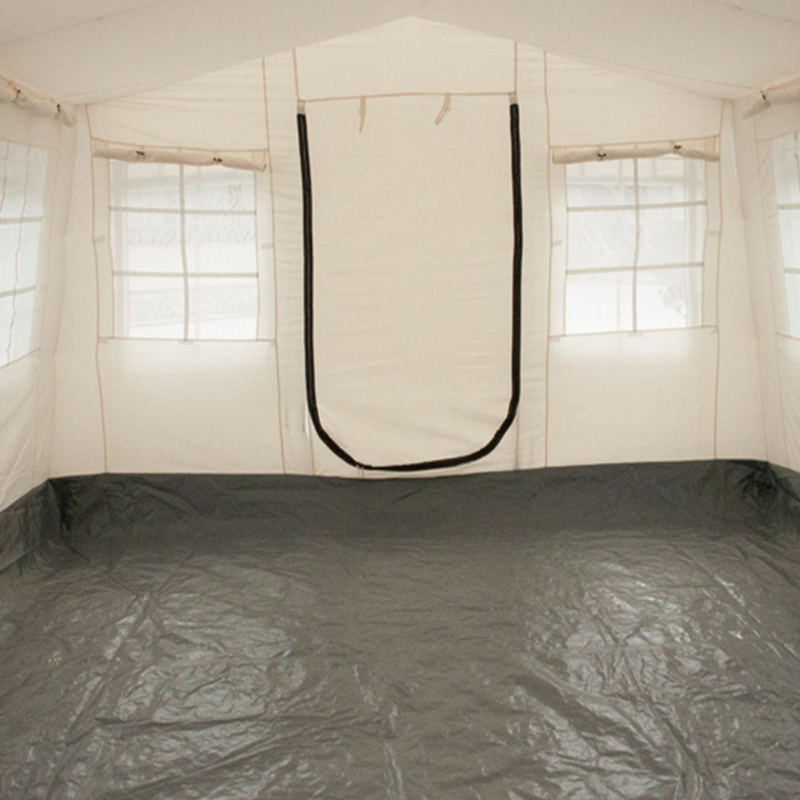

| Inner tent | ||
| Centre height | 2.30 m | |
| Wall Height | 1.80 m | |
| Specification | Outer tent | 450 - 455 gsm fire retardant* PVC coated fabric 5000 mm, natural white |
| Inner tent | 120 gsm Polycotton, natural white | |
| Groundsheet | 190 gsm Polyethylene (HDPE), PVC fabric, sewn in bathtub, light grey/natural white | |

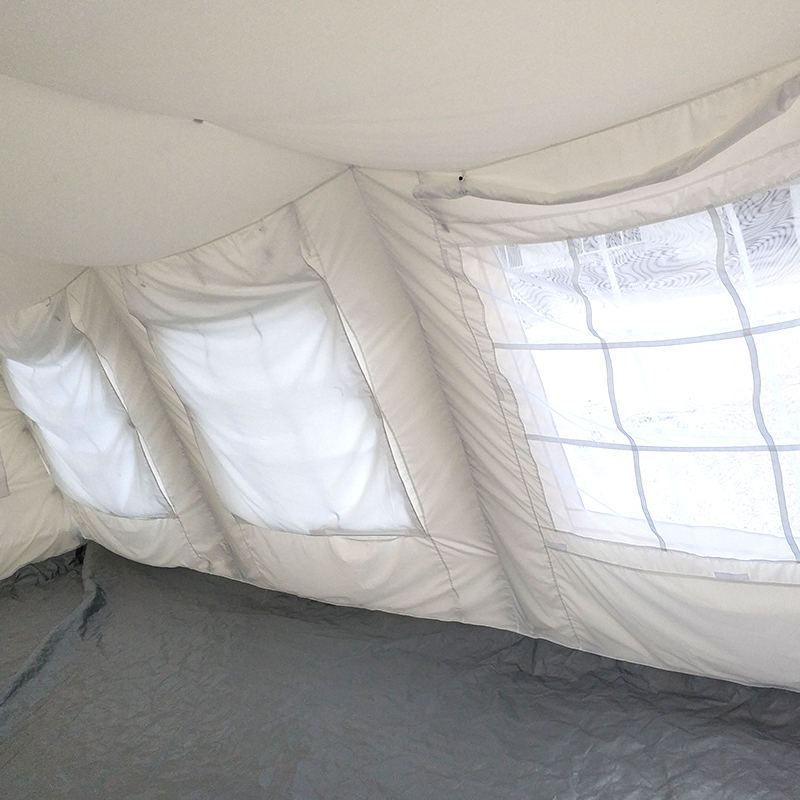

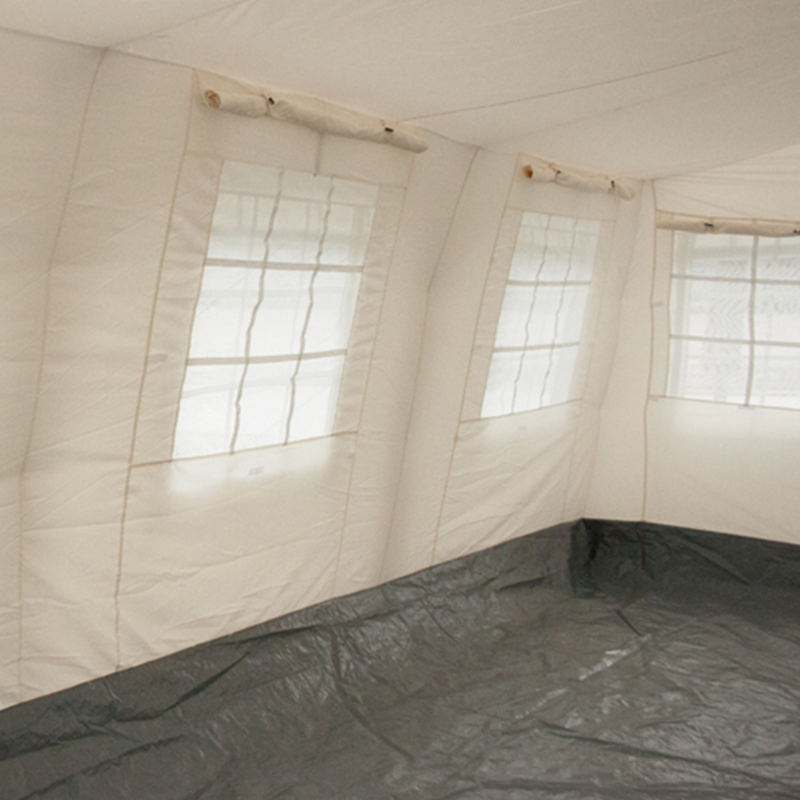

| Windows |
Six windows on long sidewalls 0.85 x 0.85 m with PE stripes reinforcement Four windows on short sidewalls 0.70 x 0.85 m with PE stripes reinforcement |
|
| Doors | One door on each gable end side 1.00 x 1.80 m, closed with velcro | |
| Groundsheet | Double stitched to inner tent, 100 - 200 mm above the ground | |
| Main frame | 35 aluminum pipes 37 mm diameter, 2 mm thick, silver / 10 steel connectors, silver / 12 steel connectors with base plates, silver / Four hanging steel connectors | |
| Seams | All seams are double-stitched with welded main roof seams | |
| Packing / Shipping | Packing | All contents are packed in a wooden box. |
| Dimensions | 110 x 94 x 52 cm / 192 x 46 x 48 cm | |
| Weight | 195 Kg | |
| Volume Packed | 0.962 Cbm | |
| Loading | 20' 24 Unit | 40' 50 Unit | 40' HCL 60 Unit | |
