Specifications | ||
Item No. | MPHG72 | |
Item Name |

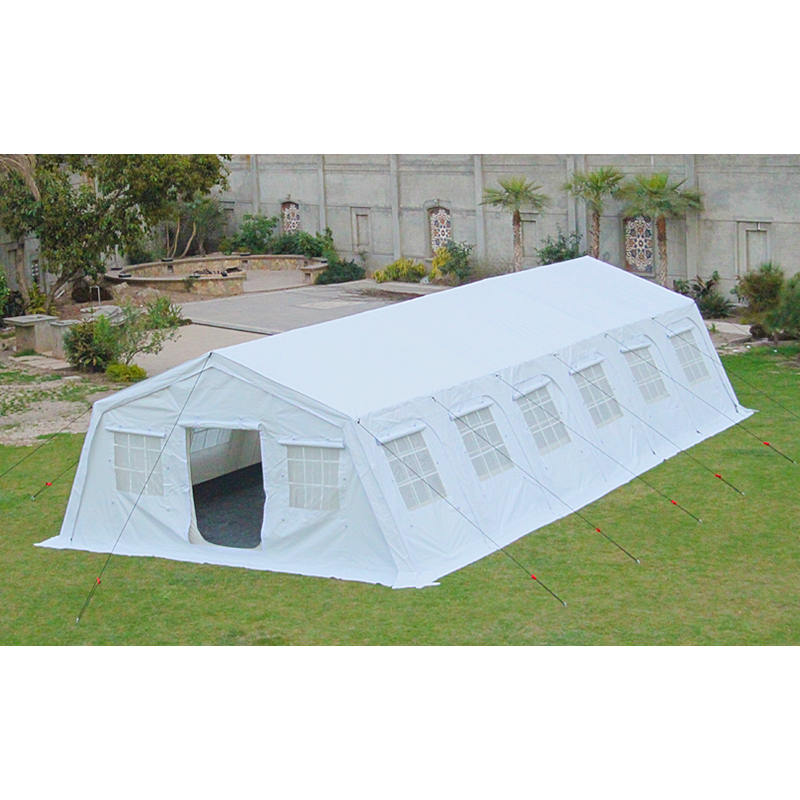

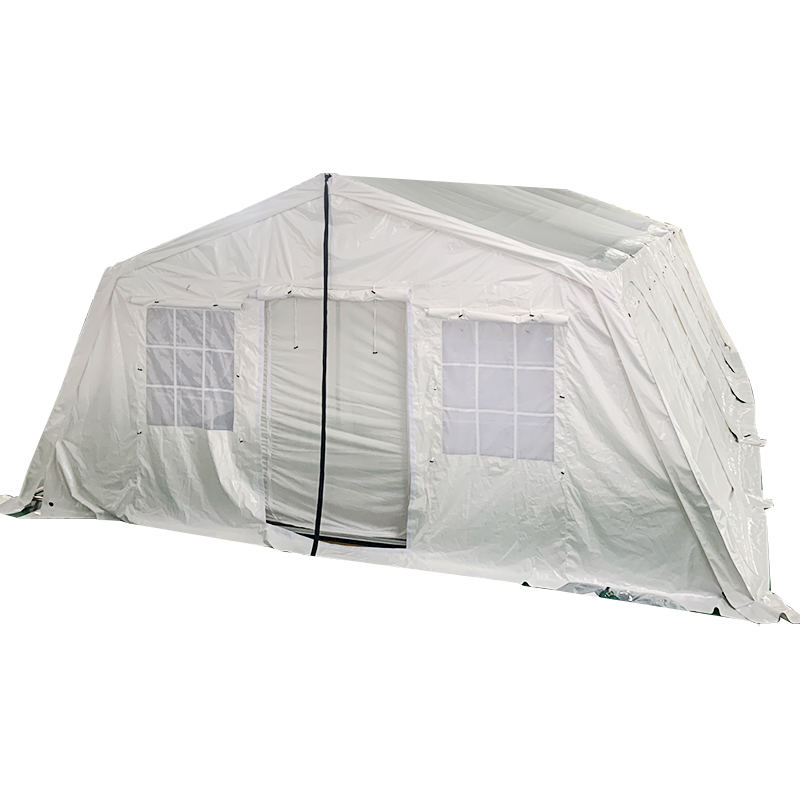

Multipurpose tent Huggy Tent 72 UNICEF standard |
|
Dimensions | Outer tent | |
Total size | 12.00 x 6.00 m | |
Centre height | 2.95 m | |
Wall height | 2.10 m | |

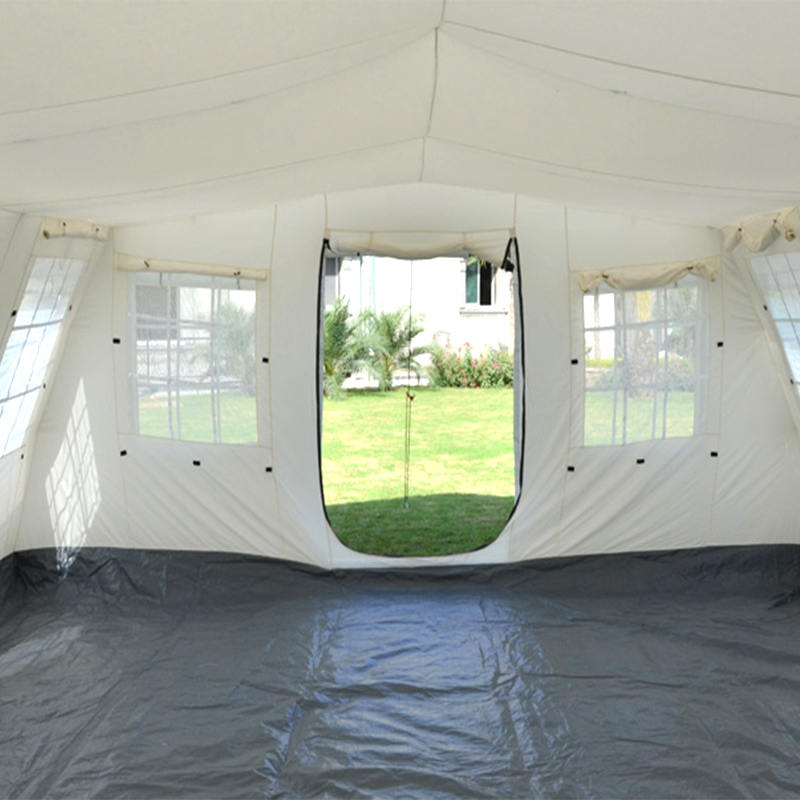

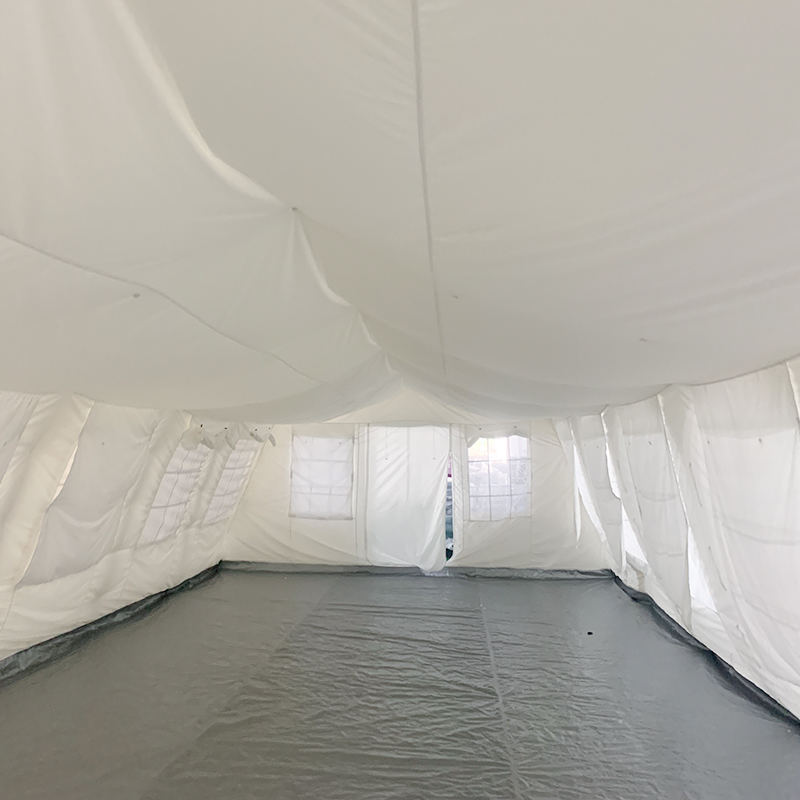

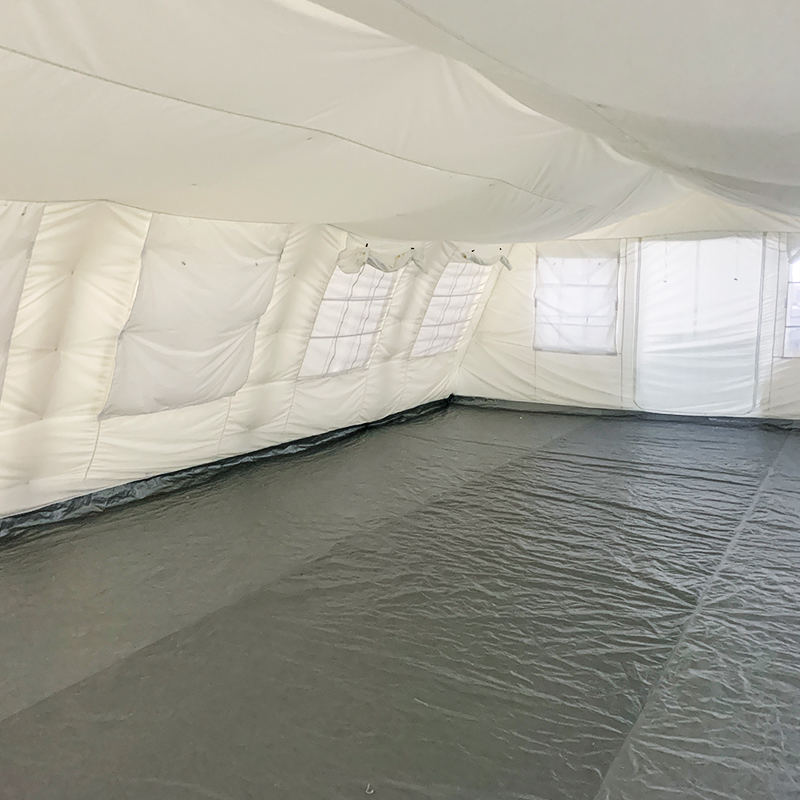

Inner tent | ||
Centre height | 2.40 m | |
Wall height | 1.95 m | |
Specification | Outer tent | 450 - 455 gsm fire retardant* PVC coated fabric 5000 mm, natural white |
Inner tent | 120 gsm Polycotton, natural white | |
Groundsheet | 190 gsm Polyethylene (HDPE), PVC fabric, sewn in bathtub, light grey/natural white | |

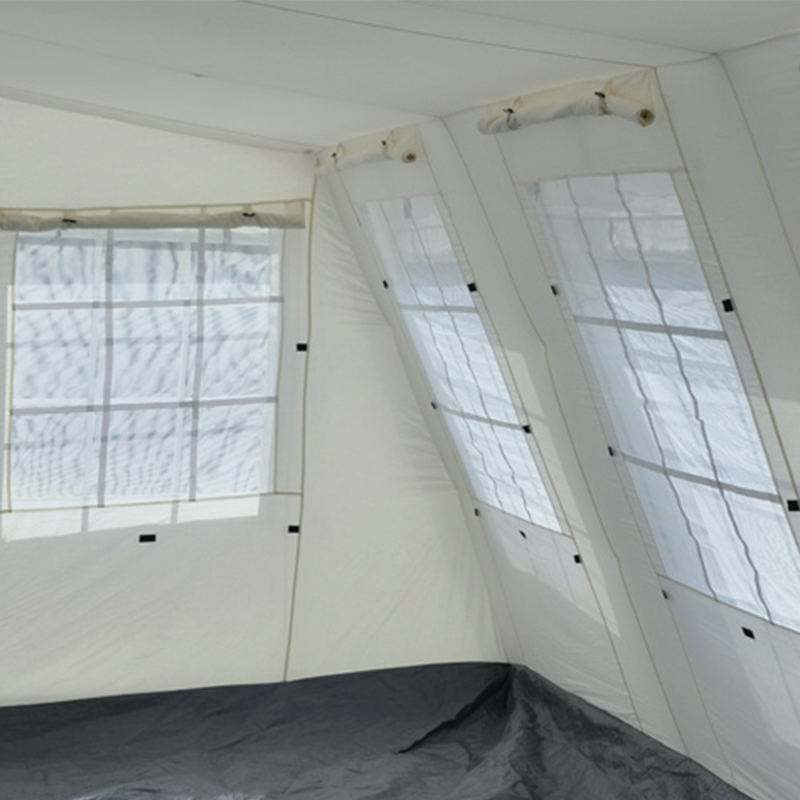

Windows | 12 windows on long sidewalls 1.05 x 1.10 m with PE stripes reinforcement | |
4 windows on short sidewalls 0.85 x 1.00 m with PE stripes reinforcement | ||
Doors | One door on each gable end side 1.20 x 2.00 m, closed with velcro | |
Groundsheet | Double stitched to inner tent, 100 - 200 mm above the ground | |
Main frame | 64 aluminum pipes 37 mm diameter, 2 mm thick, silver,21 steel connectors, silver, | |
18 steel connectors with base plates, silver, Seven hanging steel connectors, two hooks on each end, silver. | ||
Seams |
All seams are double-stitched with welded main roof seams | |

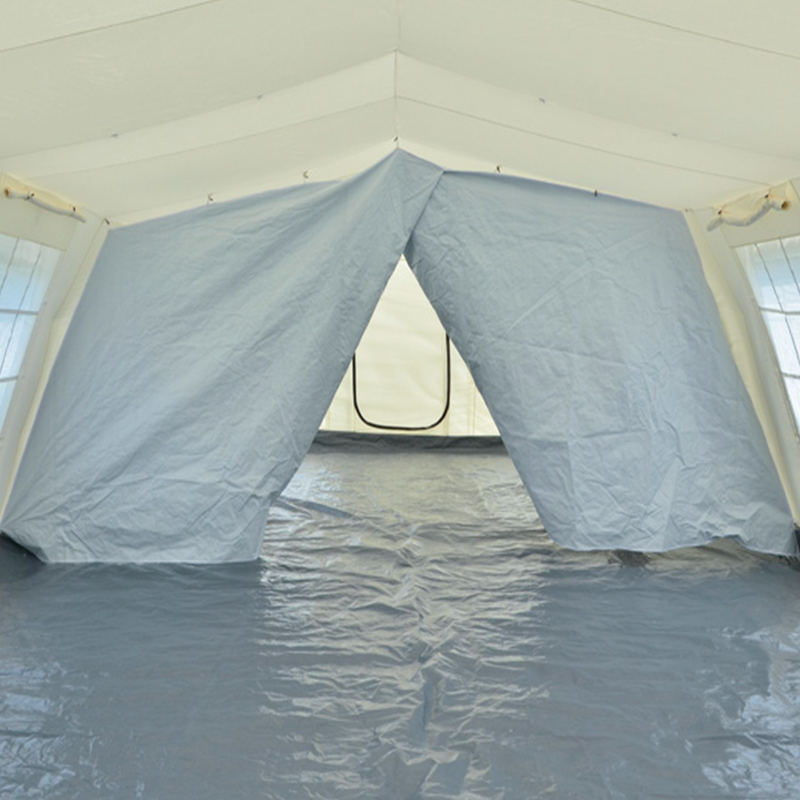

Partition--Divided into 5 compartments inside. | ||
150 gsm PE - water, rot, and UV proof - washable/disinfectable | ||
Flame Retardant Finish: CPAI 84-6 | ||
Weight: 16kgs | ||
Packing / Shipping | Packing | All contents are packed in a wooden box. |
Dimensions | 110 x 94 x 55 cm / 110 x 94 x 40 cm / 200 x 46 x 38 cm / 110 x 46 x 55 cm | |
Weight | 400 Kg | |
Volume Packed | 1.611 Cbm | |
Loading | 20' 16 Unit | 40' 32 Unit | 40' HCL 36 Unit | |
