| Specifications | ||||
| Item No. | MUS1032 | |||
| Item Name |

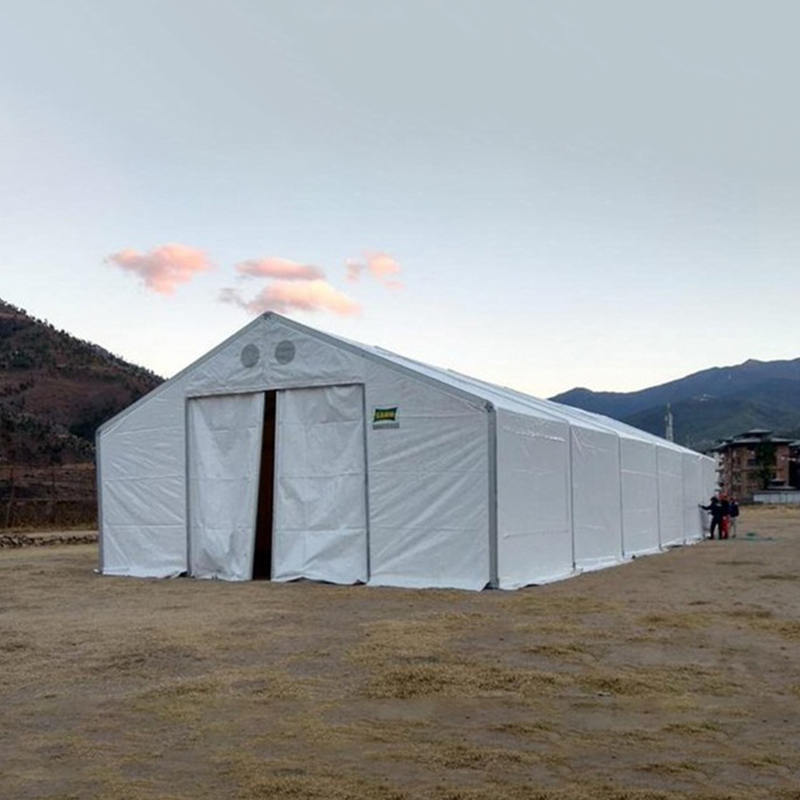

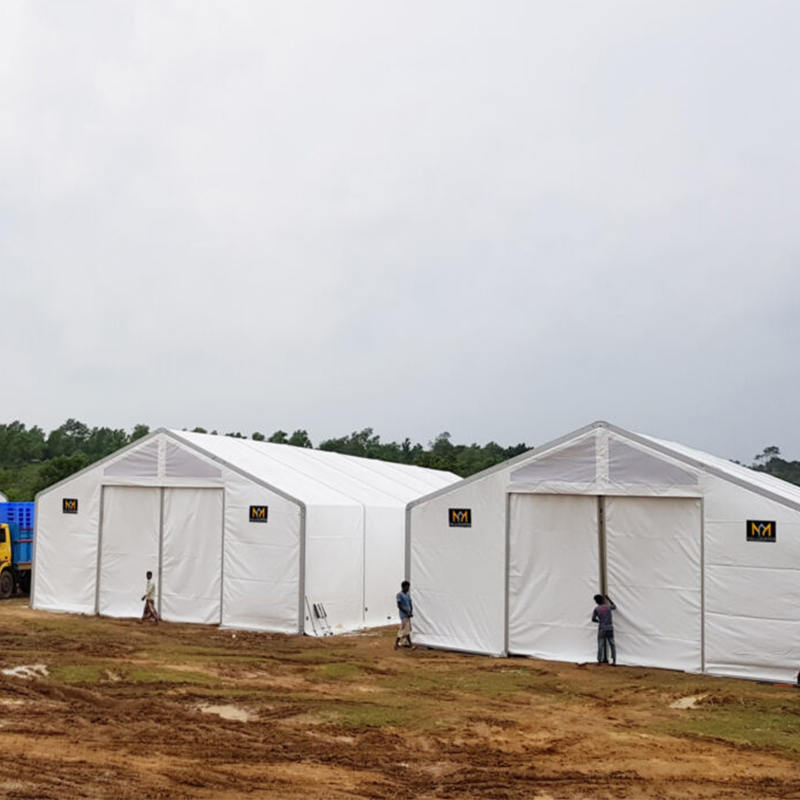

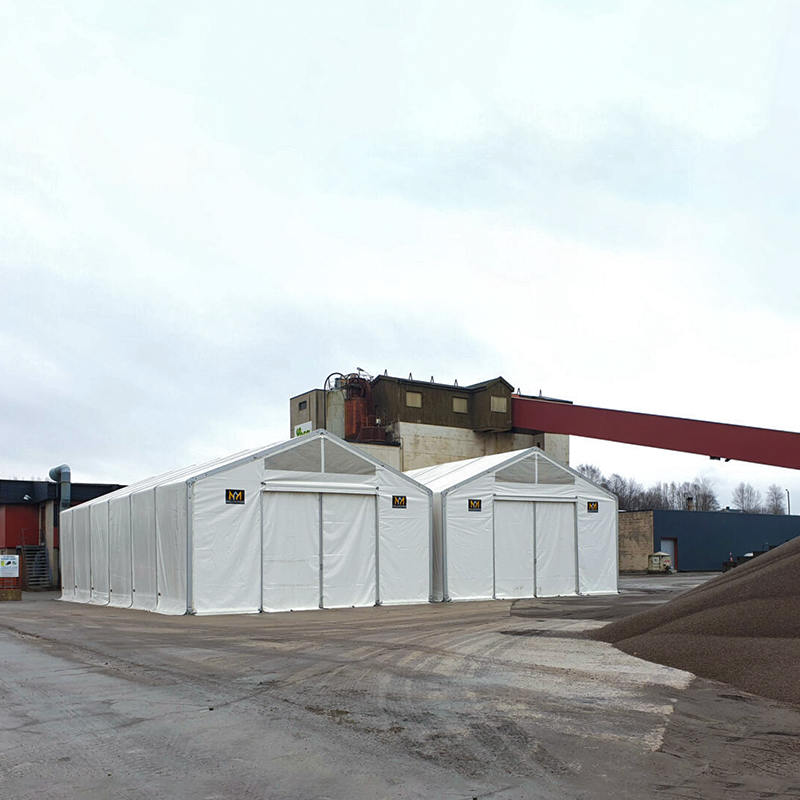

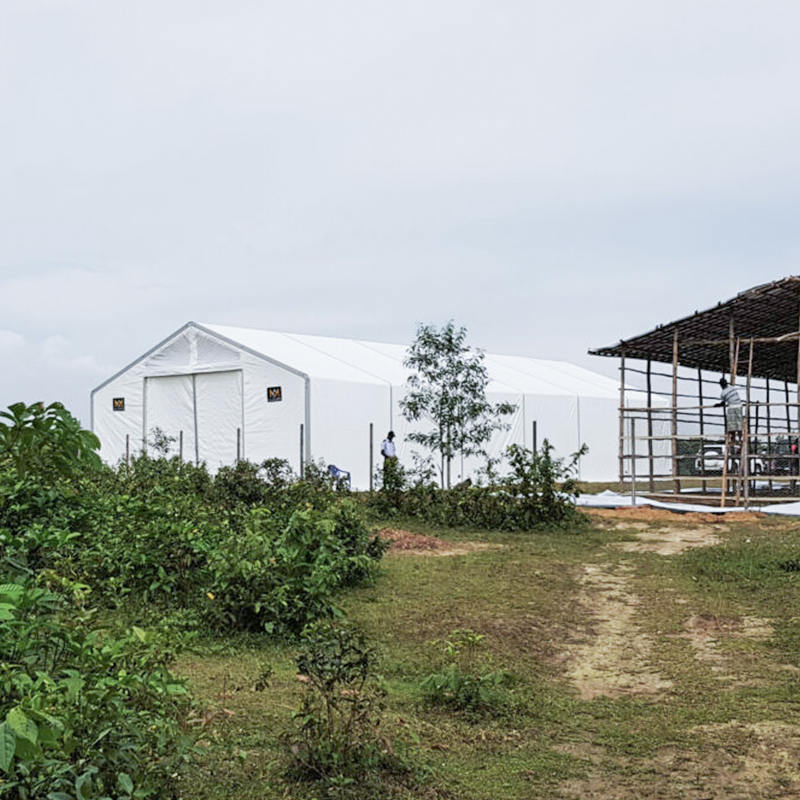

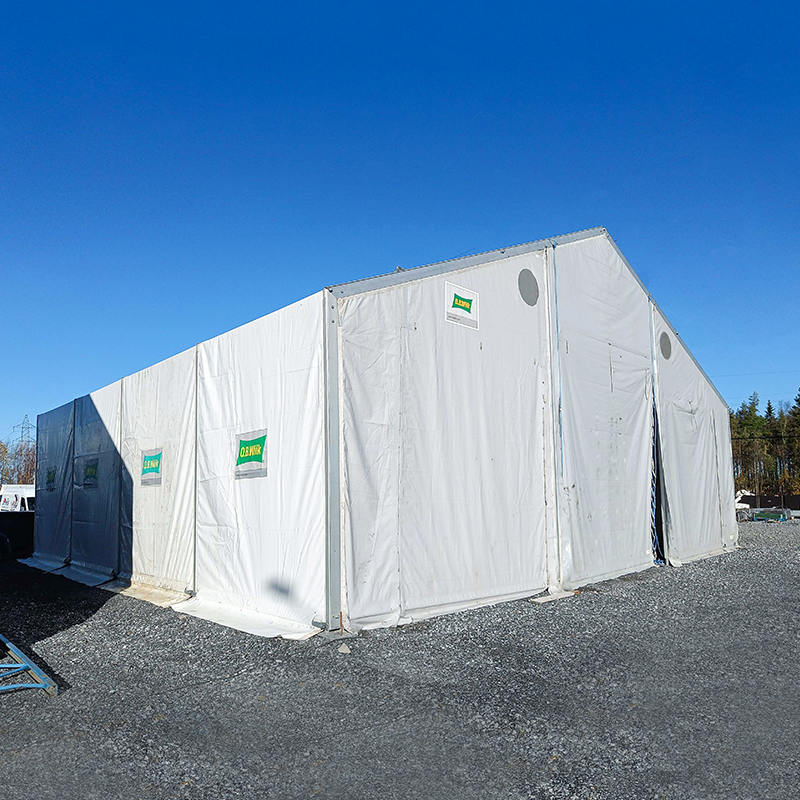

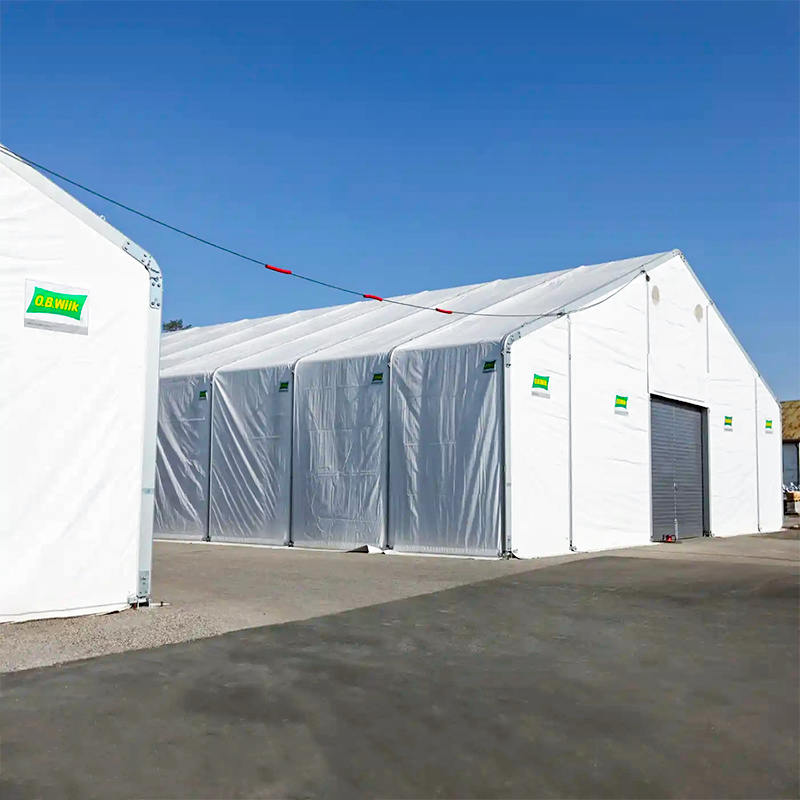

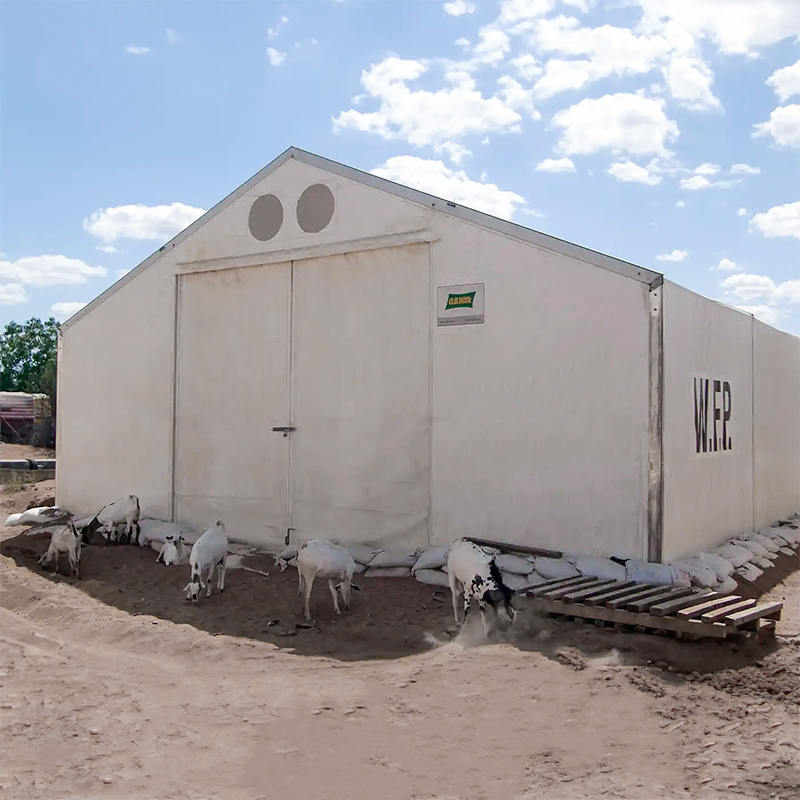

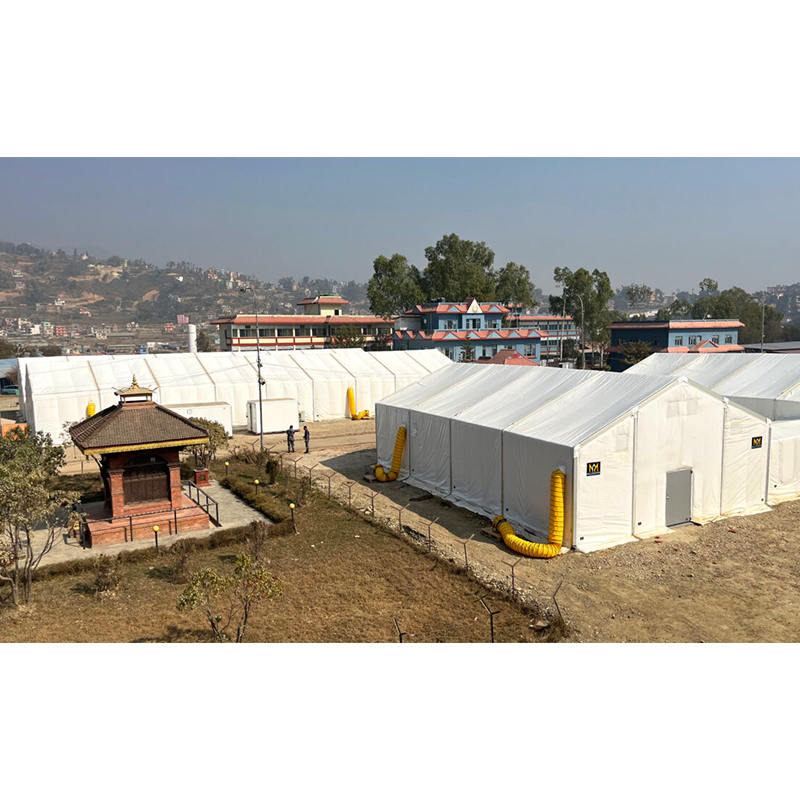

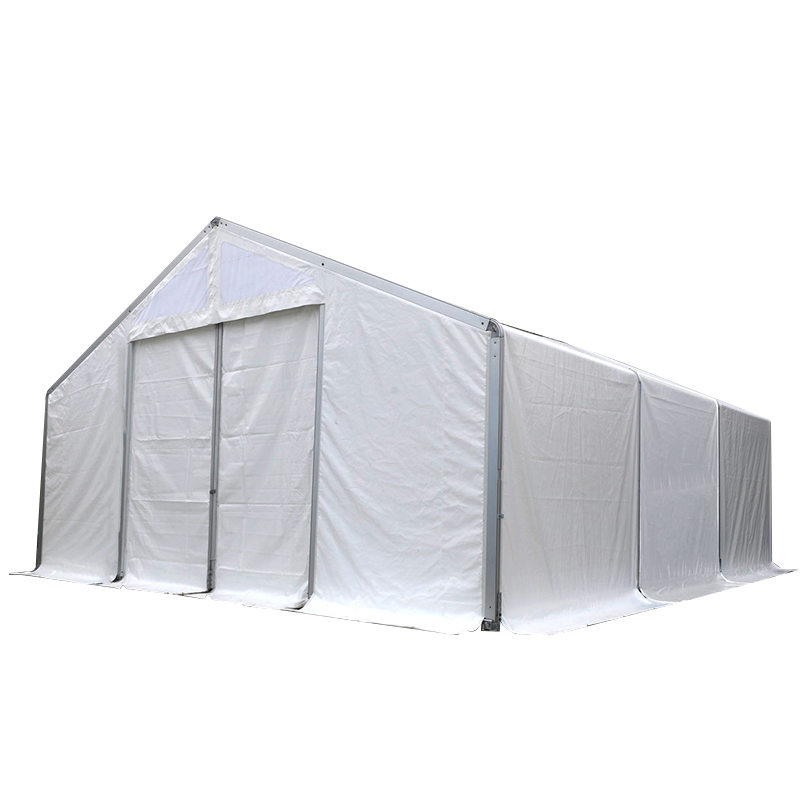

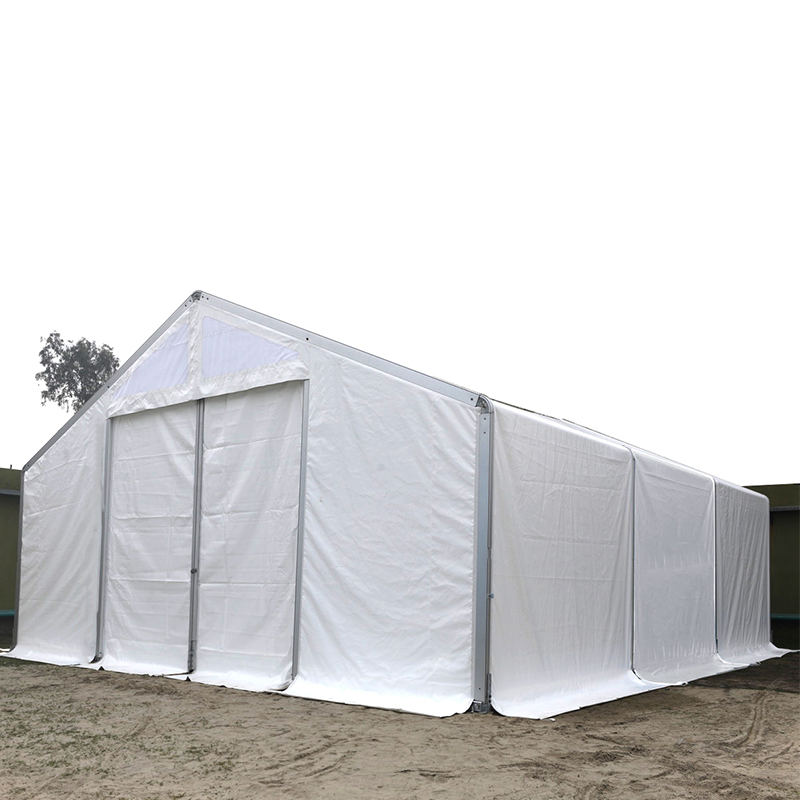

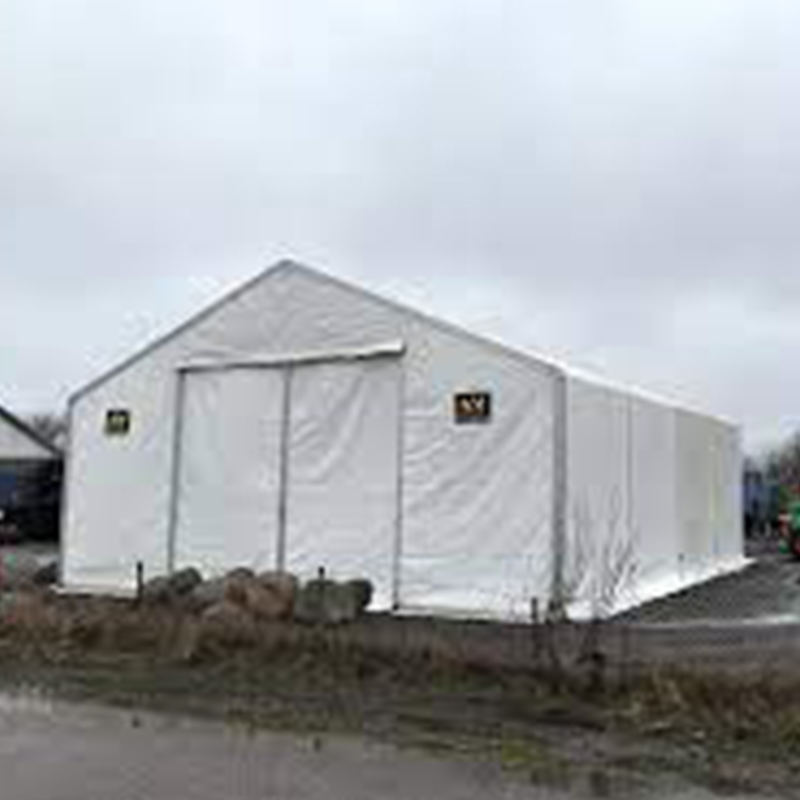

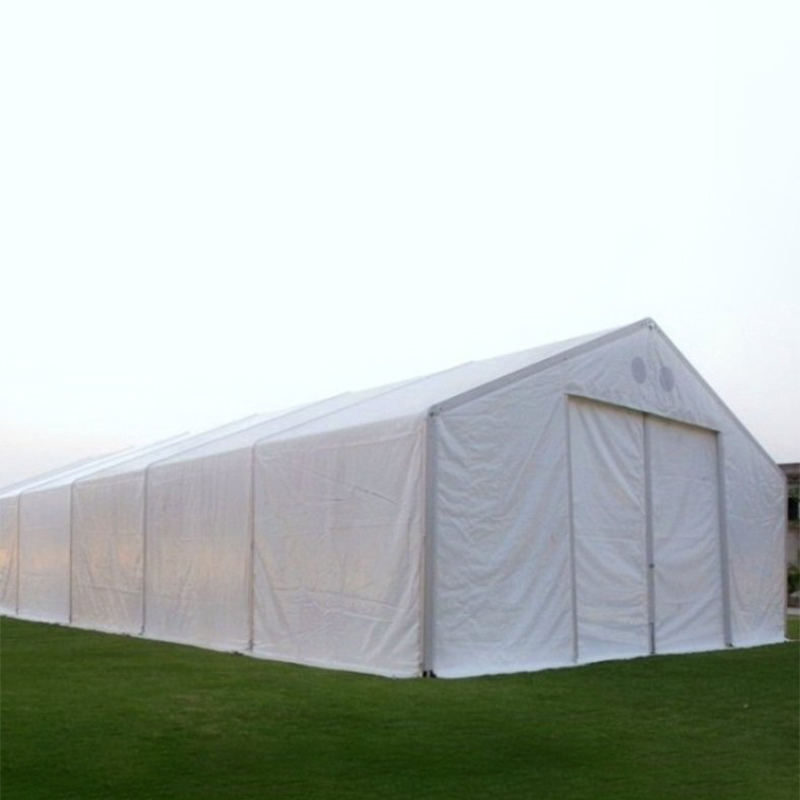

10x24m Mobile Storage Units IFRC/ICRC/WFP/IOM Standard |
|||

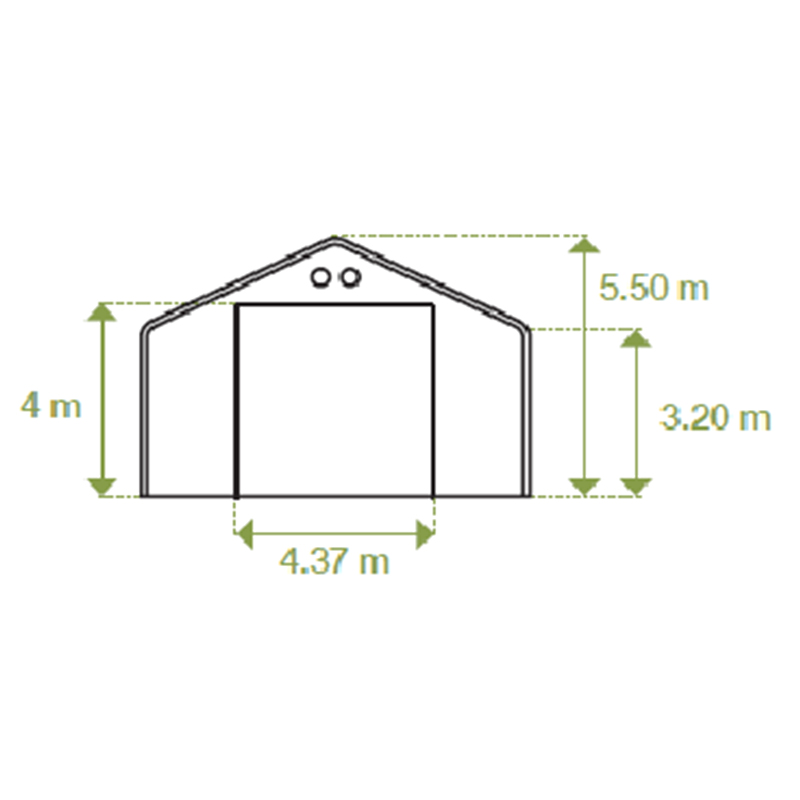

| Dimensions | Standard Size | 10 x 24 m | ![]() |
|
| Total Useable Area | 240 m² | |||
| Main Floor | 240 m² | |||
| Centre Height | 5.50 m | |||
| Width | 10.00 m | |||
| Ridge Length | 24.0 m | |||
| Side Wall Height | 3.20 m | |||
| Gable Door | ||||
| Total Size | 4.37 x 4.00 m | |||
| Specification | Modular Frame |
Aluminum box profiles 172x66x3 mm. Hot-dipped galvanized steel apex, base plates, and other steel components. |
||
| Materials | ||||
| Outer Tent | Roof, wall, gable covers: 700 gsm PVC coated polyester, white, UV protected. | |||
| Ventilators |
The gable ends are fitted with high-placed large ventilators covered with PVC-coated mesh. The ventilators are constructed in such a way that rainwater cannot enter the MSU. |
|||
| Doors | Both gable ends are fitted with roll-up doors, 450 x 400 cm. | |||

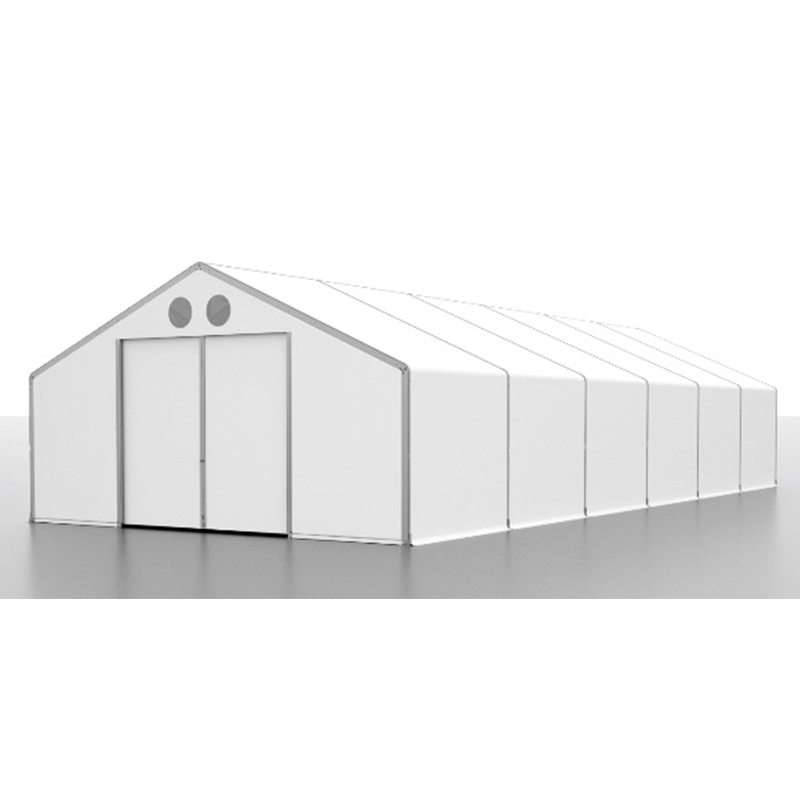

| Modularity | The length of the shelter can be endlessly extended with 10 x 4 m modules. | |||
| Packing / Shipping | Package | Items | Weight (kgs) | Volume (m³) |
| A(115x80x100cm) | Roof Covers | 570 | 0.94 | |
| Gable Covers | ||||
| B | Apex Joints | 460 | 0.52 | |
| Base Plates | ||||
| Bracing Cables | ||||
| Spikes | ||||
| Bolts & Nuts | ||||
| Toolset | ||||
| Repair Kit | ||||
| C | Trusses | 592 | 1.31 | |
| Purlins | ||||
| Tension Bars | ||||
| D | Wall Elements | 345 | 1.31 | |
| E | Gate Assembly | 95 | 0.33 | |
| F | 1x Ladder | 7 | 0.13 | |
| Total Gross Weight | 2,069 | 4.1 | ||
| Estimated Loadability¹ | ||||
| Containers | Number of Tents | |||
| 20' GP | 6 shelters | |||
| 40' GP | 12 shelters | |||
| 40' HC | 12 shelters | |||
| Price | FOB Shanghai | |||
