| Specifications | ||||
| Item No. | MUS1032 | |||
| Item Name |

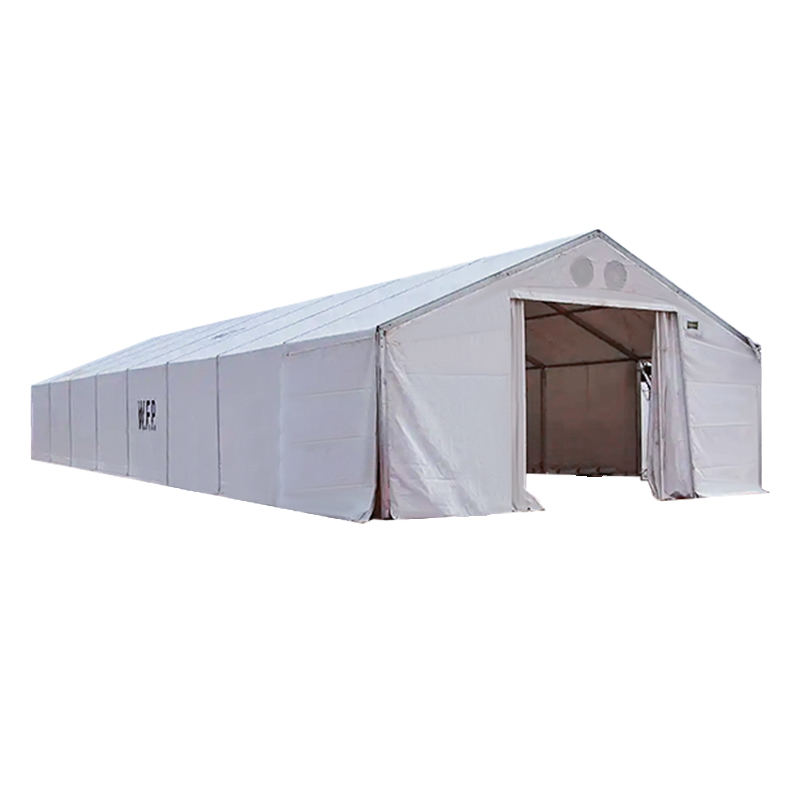

12x32m Mobile Storage Units IFRC/ICRC/WFP/IOM Standard |
|||
| Dimensions | Standard Size | 10 x 32 m | ![]() |
|
| Total Useable Area | 320 m² | |||
| Main Floor | 320 m² | |||

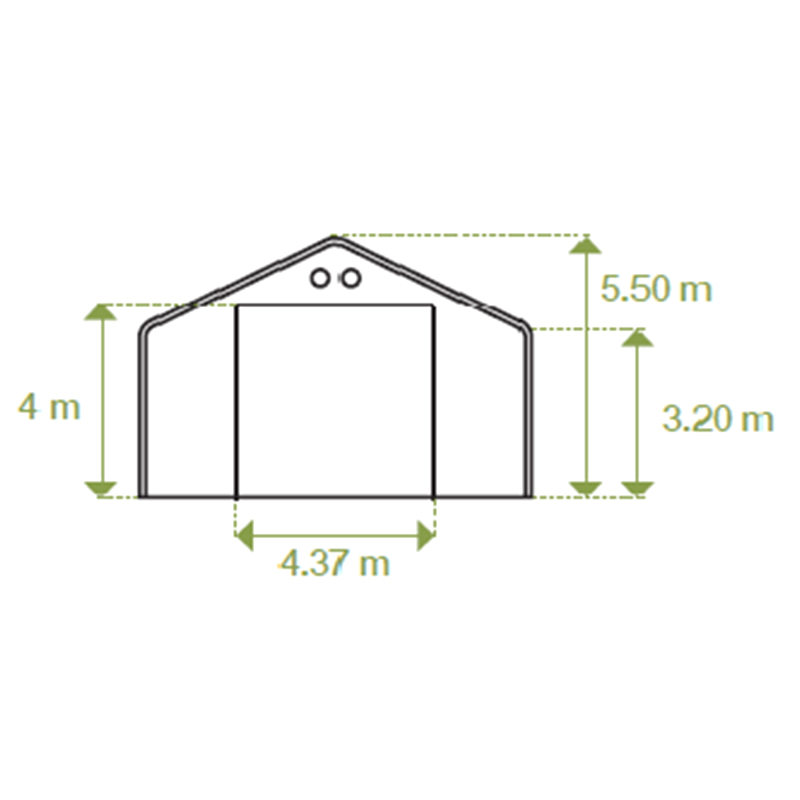

| Centre Height | 5.50 m | |||
| Width | 10.00 m | |||
| Ridge Length | 32.0 m | |||
| Side Wall Height | 3.20 m | |||
| Gable Door | ||||
| Total Size | 4.37 x 4.00 m | |||

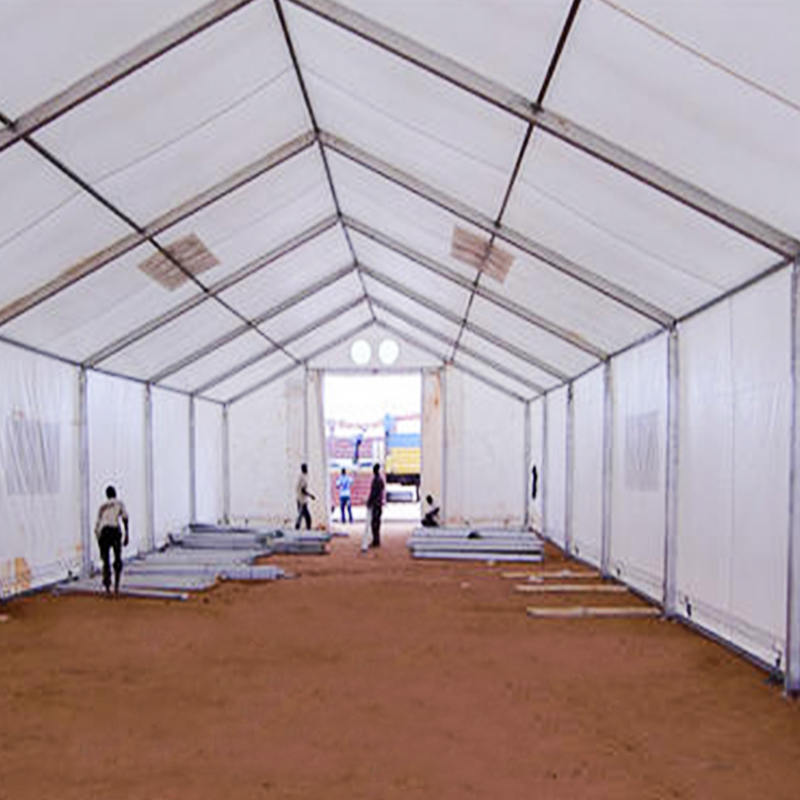

| Specification | Modular Frame | Aluminum box profiles 172x66x3 mm. | ||
| Hot-dipped galvanized steel apex, base plates, and other steel components. | ||||
| Materials | ||||
| Outer tent | Roof, wall, gable covers: 700 gsm PVC coated polyester, white, UV protected. | |||
| Ventilators | The gable ends are fitted with high-placed large ventilators covered with PVC-coated mesh. | |||
| The ventilators are constructed in such a way that rainwater cannot enter the MSU. | ||||
| Doors | Both gable ends are fitted with roll-up doors, 450 x 400 cm. | |||
| Modularity | The length of the shelter can be endlessly extended with 10 x 4 m modules. | |||
| Packing / Shipping | Package | Items | Weight (kgs) | Volume (m³) |
| A /113 x 80 x 127 | 7x Roof cover | 690 | 1.148 | |
| 4x Logo banner | ||||
| 1x Roof cover for logo, | ||||
| 2x Gable cover with sliding door | ||||
| 4x Gate cover | ||||
| B / 113 x 80 x 74 | bolts and nuts | 550 | 0.668 | |
| C / 365 x 64 x 50 | 18x Half truss | 751 | 1.645 | |
| 1x Lifting fork for purlins | ||||
| 24x Purlins | ||||
| 16x Wall tension bars | ||||
| 4x Gable columns | ||||
| D/ 370 x 60 x 55 cm | 18x Wall elements + corner joints |
430 | 1.22 | |
| E / 437 x 31 x 25 | corner joints | 95 | 0.338 | |
| 2x Gate assembly | ||||
| 2x Gable tension bar left | ||||
| F / 422 x 40 x 8 | 1 x ladder | 7 | 0.135 | |
| Total gross weight | 2,455 | 7.27 | ||
| Estimated loadability¹ | ||||
| Containers | Number of tents | |||
| 20' GP | 5 shelters | |||
| 40' GP | 10 shelters | |||
| 40' HC | 10 shelters | |||
| Price | FOB Shanghai | USD 11900 | ||
