IFRC/ICRC/WFP/IOM Standard 6.5x8m Portable Tent Mobile Storage Units(MSU)

We have the capability and experience to design, manufacture, deliver, and install custom structures.
This range is flexible, robust, portable, and is designed for fast delivery at a competitive price. Available in 10m and 12m spans by any length.
Key feature
1. Standard size 6.5 m width by 8 m length (extra sections 4 m length can be added) with large entry doors.
2. Fast setup with four to six people without the use of lifting equipment or working on heights.
3. Made of durable aluminum box profiles and hot-dipped galvanized hardware, with covers of durable fire retardant and UV-resistant translucent PVC fabric and fully high-frequency welding for long life.
4. Designed to withstand high winds up to 0.6kN/m?(<110km/h)and can be used in both hot and cold climates.
5. Enhanced ventilation and protection thanks to gabl events with adjustable cover flaps and Venturi vents in the roof panels.
6. Supplied with ballast anchors and heavy-duty LED lighting kit.
7. MSU can be customized and include optional accessories, such as a fire alarm system, lighting system 400 lux, renewable energy, internal partition, solid flooring, pedestrian doors, linking kit, windows, and more.

VIEW MORE

Specifications
Item No.	MUS6580
Item Name	6.5 x 8 m Mobile Storage Units IFRC/ICRC/WFP/IOM Standard

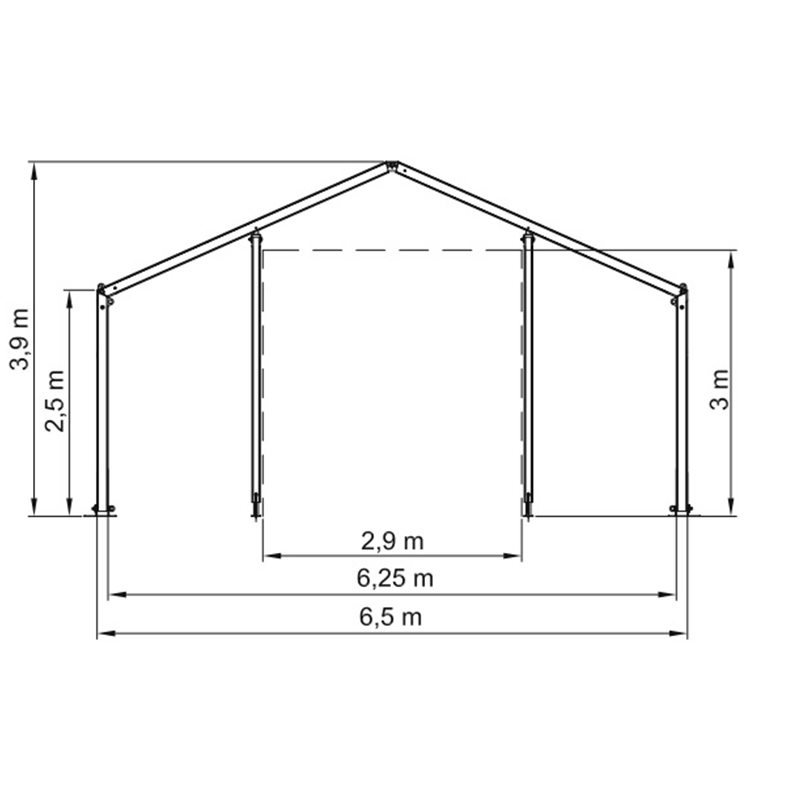

Dimensions	Standard Size	6.5 x 8 m
	Total Useable Area	52 m²
	Main Floor	53 m²
	Centre Height	3.90 m
	Width	6.50 m
	Ridge Length	8.0 m
	Side Wall Height	2.50 m
	Gable Door
	Total Size	2.9 x 3.00 m
Specification	Modular Frame	Aluminum box profiles 172x66x3 mm. Hot-dipped galvanized steel apex, base plates, and other steel components.
	Materials
	Outer Tent	Roof, wall, gable covers: 700 gsm PVC coated polyester, white, UV protected.
	Ventilators	The gable ends are fitted with high-placed large ventilators covered with PVC-coated mesh. The ventilators are constructed in such a way that rainwater cannot enter the MSU.
	Doors	Both gable ends are fitted with roll-up doors, 290 x 300 cm.
	Modularity	The length of the shelter can be endlessly extended with 10 x 4 m modules.
Packing / Shipping	A (395 x 30 x 45 cm)	B(280 x 18 x 45 cm)	C(120 x 80 x 40 cm)	D(120 x 80 x 50 cm)
	6x Half Truss	6x Wall elements	3x Roof apex	2x Rope 15m, 1x Tool kit, 1x Repair kit
	6x Purlins	2x Gable tension bar right	6x Base plate	1x Spade, 1x Assembly Manual
	4x Wall tension bars	2x Gable tension bar left	4x Gable base plate	1x Roof cover
	4x Gable columns,		4x Counter-bracing cables wall	1x Roof cover for logo
	1x Lifting fork for purlins		16x Ground spikes 20 x 800 mm	2x Gable cover with roll-up door
			13x Hex screw M16x180 HDG	4x Logo banner
			5x Hex screw M16x90 HDG
			18x Hex locknut
			M16 HDG, 36x Washer M16 HDG
			8x Hex screw M12x120 HDG
			19x Hex screw M12x80 HDG
			27x Hex locknut M12 HDG
			54x Washer M12 HDG
			17x Linchpin, 1x Tension bar tool
	Weight (kgs)	Weight (kgs)	Weight (kgs)	Weight (kgs)
	185	93	154	210
	Volume (m³)	Volume (m³)	Volume (m³)	Volume (m³)
	0.576	0.217	0.384	0.48
	Total Gross Weight		640	1.61
	Estimated Loadability¹
	Containers	Number of Tents
	20' GP	14 shelters
	40' GP	28 shelters
	40' HC	32 shelters
Price	FOB Shanghai
