Specifications | ||
Item No. | PS0460R | |
Item Name | Plastic Sheeting & Tarpaulin 4x60m | |
› Reinforced Flexible Tarpaulins for Temporary Shelter or Protection | ||
Contents | Width×Length | 4×60 m |
Weight | 190 g/m2 ± 20 g, plus 10% for the reinforcement bands (approx. 5 kg) | |

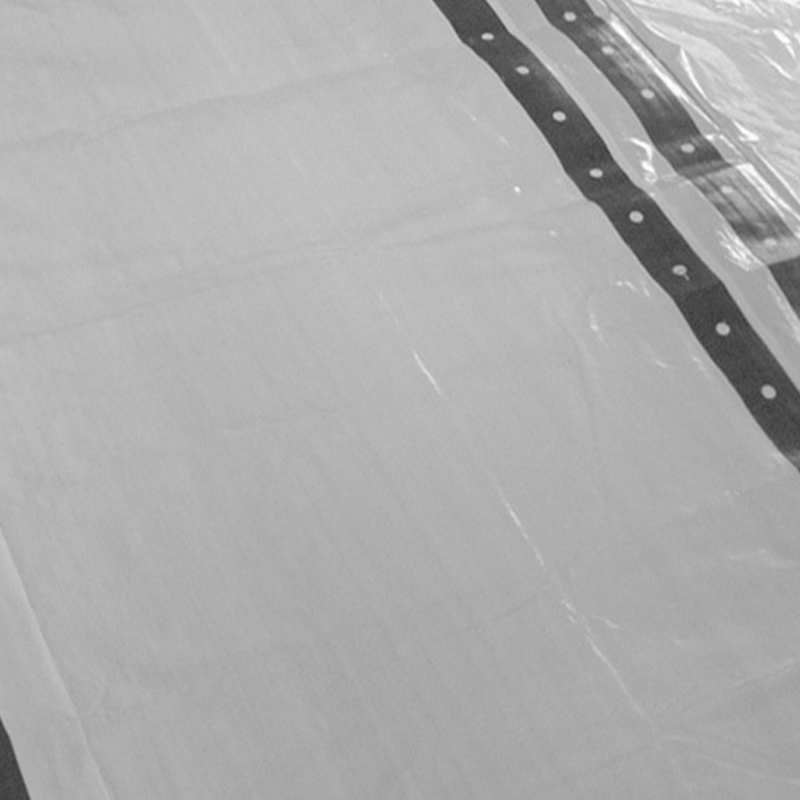

Material | Woven HDPE black fibers fabric laminated on both sides with LDPE coating with 6 reinforced bands made of HDPE in the length | |
Prepunched 8 mm holes on the 2 side bands at 0,1 m intervals | ||
UV Resistance | Max. 20% loss on original tensile strength and not less than 475N after 1500 UV exposure (UVB 313nm peak) | |
Temperature Resistance | -20°C to 80°C | |
Tensile Strength | Min. 500 N and 15% to 25% elongation in warp and weft as per ISO 1421-1 | |
Min. 700 N inside the reinforcements bands as per ISO 1421-1 | ||
Tearing Strength | Min. 100 N as per ISO 4674-1B | |
Color | White with dark grey reinforcement bands Inner black fibres to ensure opacity |
|
Packing | Packing Unit | Bale |
Packed QTY per Packing Unit | 1 pcs | |
Dimensions | Weight | Volume of Packing Unit | 210×20×20 cm | 45 kg | 0,084 m3 | |
Packed QTY per Pallet | 18 to 20 pcs per metal stackable pallet | |
Dimensions | Weight | Volume of Pallet | 225×105×112 cm | 880 to 910 kg | 2,646 m3 | |
Packed QTY per 20ft DC Ctn | 210 pcs unpalletised | 186 pcs palletised | |
Packed QTY per 40ft DC Ctn | 530 pcs unpalletised | 408 pcs palletised | |
Packed QTY per 40ft HC Ctn | 530 pcs unpalletised | 408 pcs palletised | |
Indicated Weights and Volumes Are for Your Information Only and May Vary According to Product Specification Tolerances. Please Contact Us for the Exact Information. | ||
Marking | Upon customer request |
