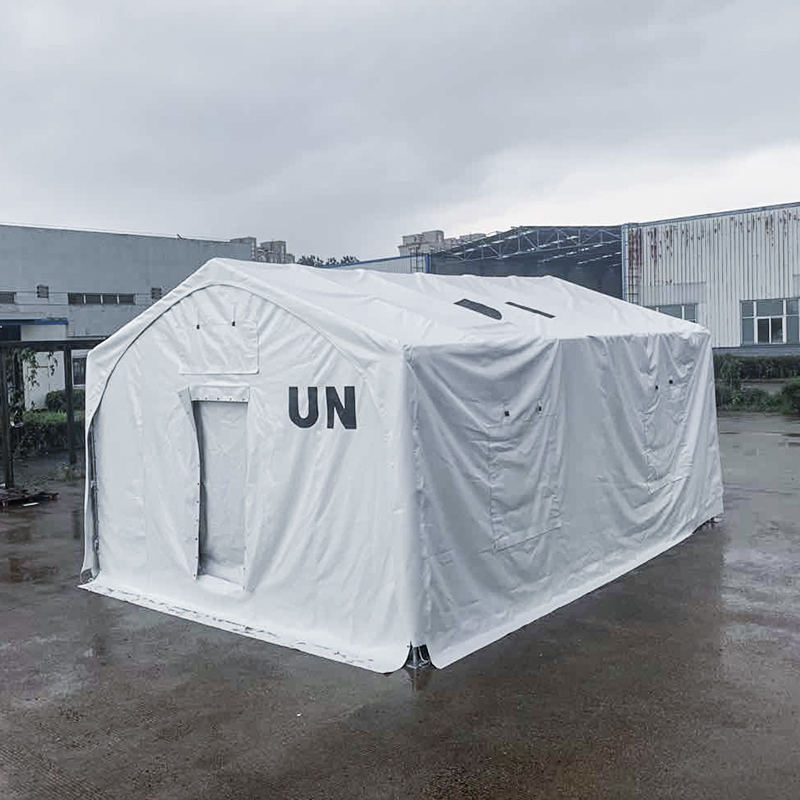

Quotation sheet for Type UN Tent | ||
Specifications | ||
Item No. | TYPEA57 | |
Item Name. |
5×7m Typa a Membrane Covered Steel Frame Structure Monusco Type A |
|
Dimensions | Width×Length | 5.00×7.00 m |
Floor Space | 35 m² | |
Eave Height | 2.50 m (above substructure) | |
Center Height | 3.50 m (above substructure) | |
Substructure | 25 cm above ground, adjustable in height ±17 cm | |
Flooring | 240 kg/m² load resistance | |
Modularity | Additional sections 1.75×5.00 m / 8.75 m² | |
Wind Speed | 40m/sec | |

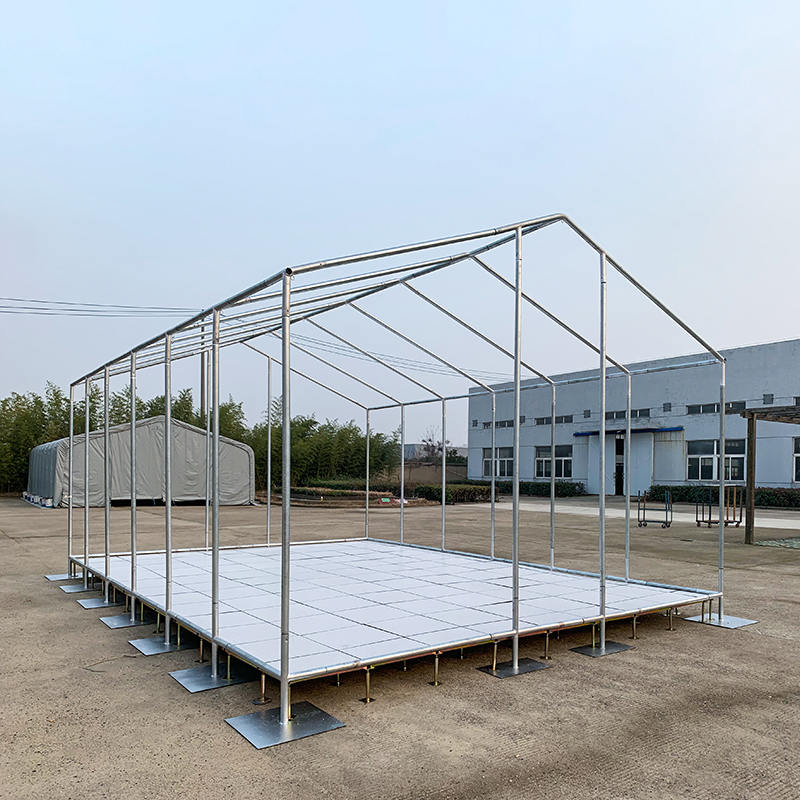

Frame | Specification | |
Pipe | 48mm×2.5mm, hot dipped galvanized steel pipe, male and female steel tube (80mm zinc coating) | |

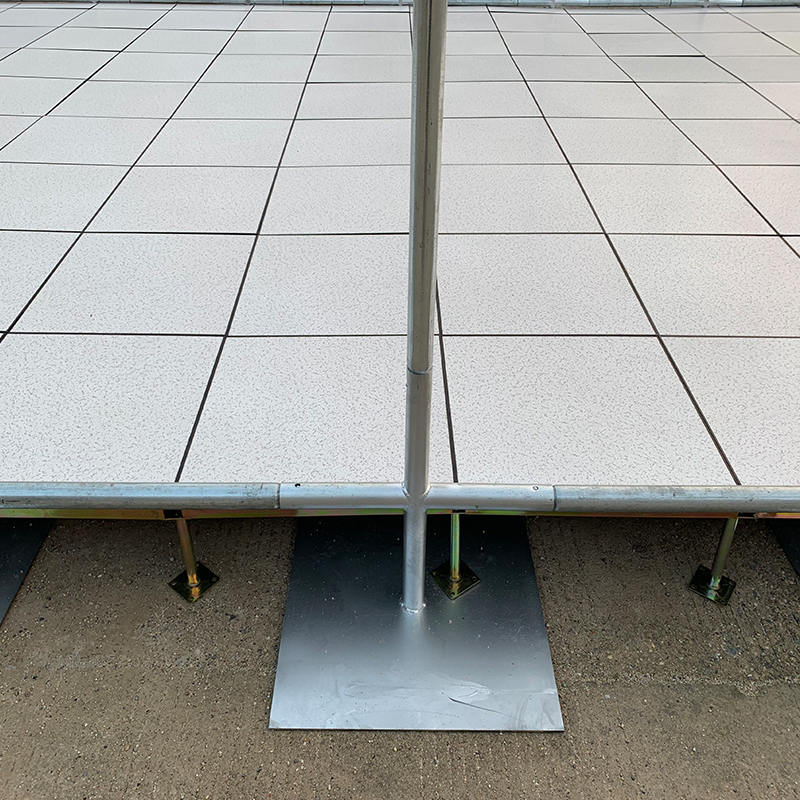

Base Plate | 548×568×5mm & 568×298×5mm | |
Door | steel doors front and back, 1000mm×2100mm×50mmT ,Keyed door knob leaves with lock and key | |
Canopy | on Gabel | |
Fabric | Exterior Membrane | White, opaque, 1200g PVC |
Interior Membrane | White, opaque, 500g PVC | |
Gable | White, opaque, 1200g PVC | |
Insulation | Laminated PES non-woven fabric | |

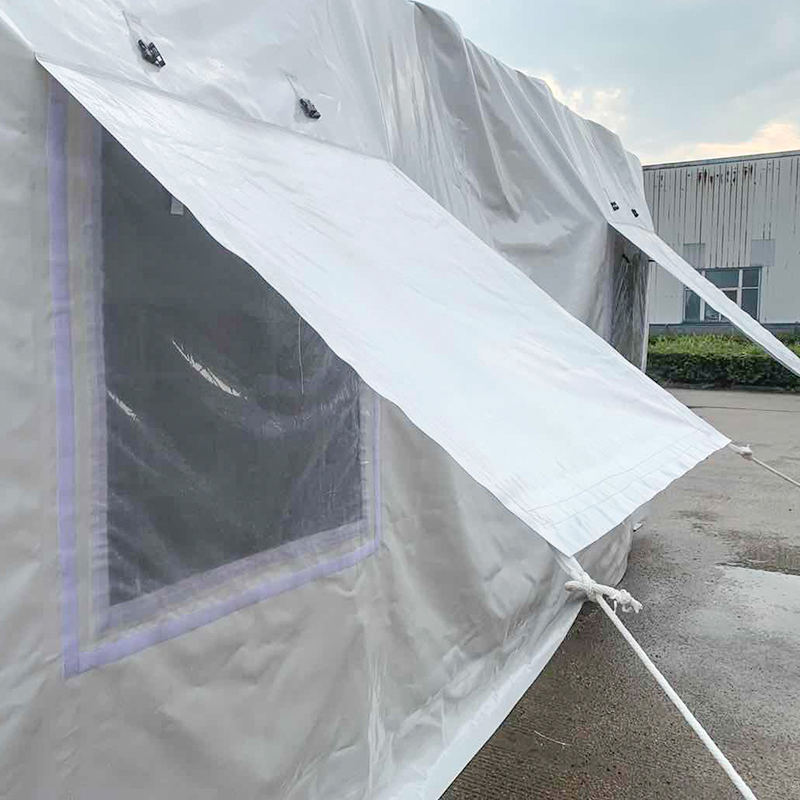

Window and Ventilation | 3 layers, PVC with zipper transparent PVC (260g/m² fr) - mosquito net - 20 holes/ cm² | |
Add-on | Optional | Air conditioning with heat pump |
Steel door and canopy | ||
Electrical system for light and power supply | ||
Packing | Packing Unit | Wooden pallet |
Packed QTY per Packing Unit | 4 packages for frame, fabric, and flooring | |
Weight | Volume | 2.2 Cbm / 1264 kgs | |
Packed QTY per 20ft / 40gp / 40'hc | 9 pcs /18 pcs / 18 pcs | |
Price | FOB Shanghai |
