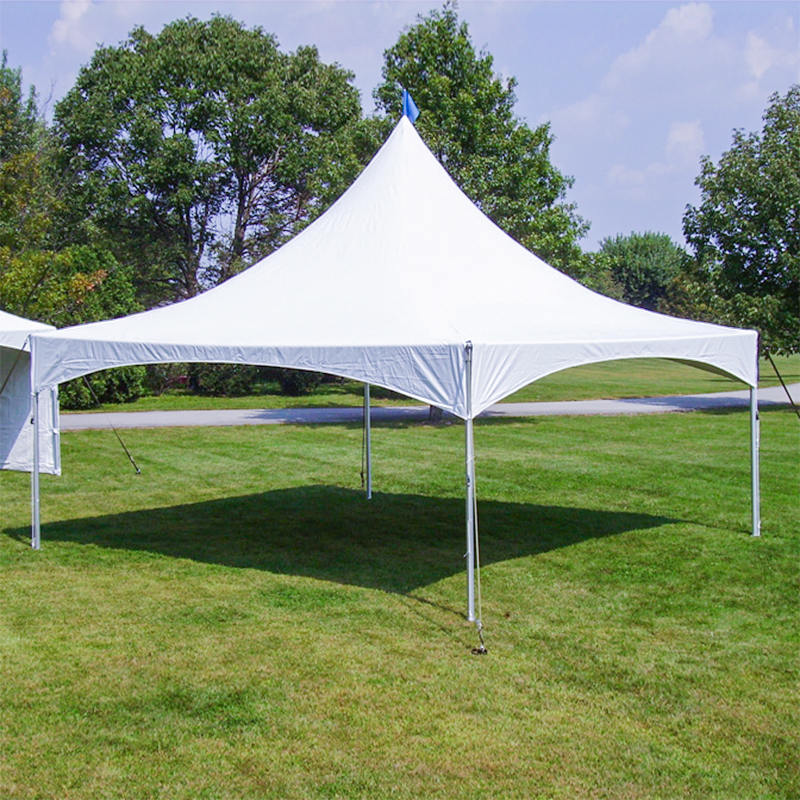

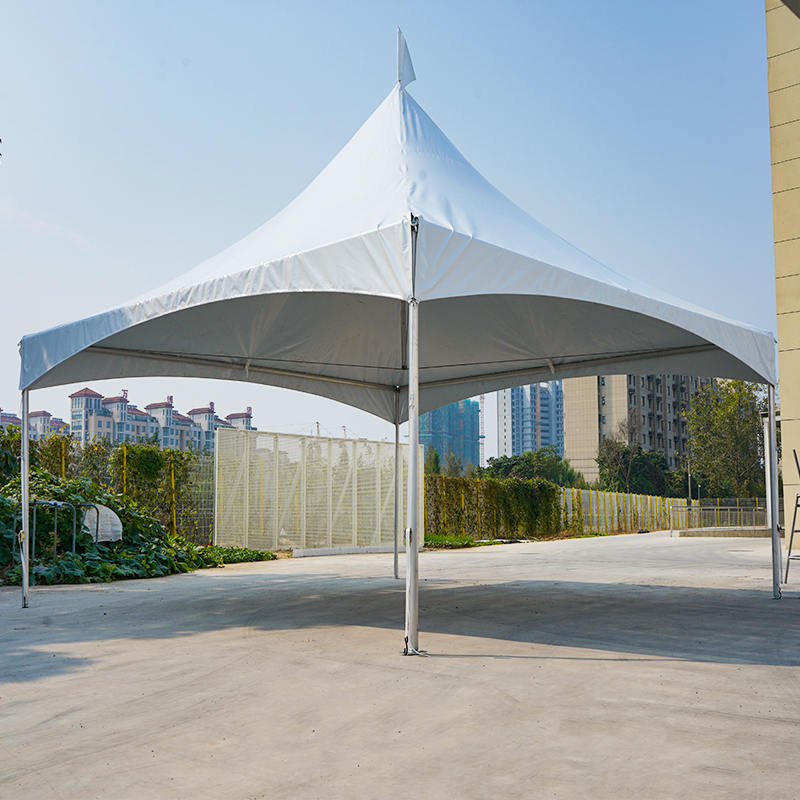

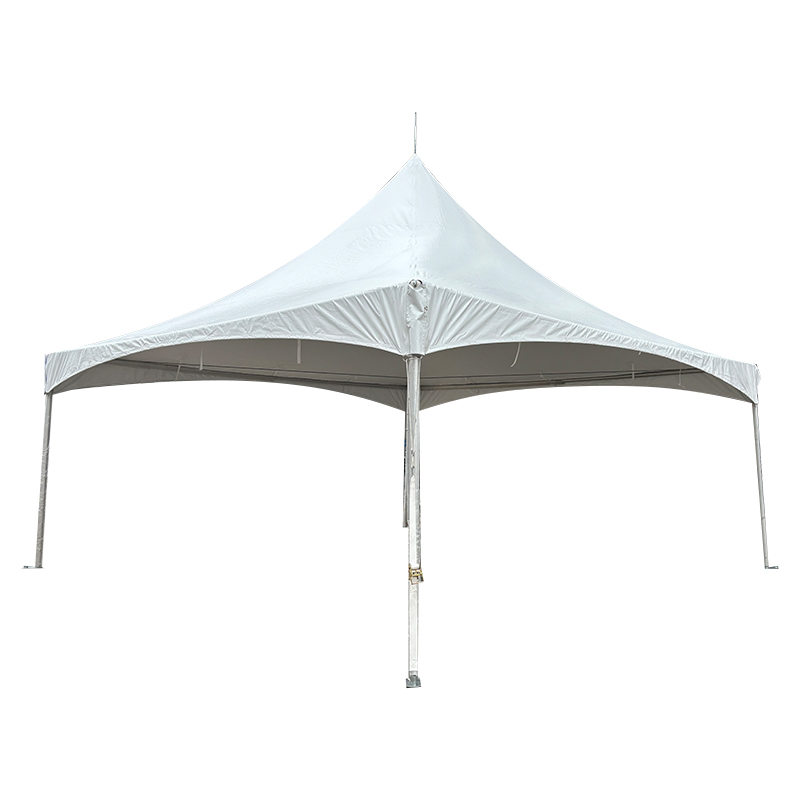

(6x6m) Aluminum Pinnacle 20"x20" High Peak Party Tent

• Our quality block-out PVC vinyl
• All panels are bonded with 1" heat-sealed overlapped seams
• Cast aluminum corner fittings
• 2.5" anodized aluminum frame
• Frame tension design with tension cables and optional flag
• Eliminates side poles and center pole - which provides more space
• Tension cables cross from corner to corner to support the center mast
• 8' Tent Legs

VIEW MOREYangzhou Mailenda Outdoor Products Co., Ltd.
  • (6x6m) Aluminum Pinnacle 20
  • (6x6m) Aluminum Pinnacle 20
  • (6x6m) Aluminum Pinnacle 20
  • (6x6m) Aluminum Pinnacle 20
  • (6x6m) Aluminum Pinnacle 20
  • (6x6m) Aluminum Pinnacle 20
  • (6x6m) Aluminum Pinnacle 20
  • (6x6m) Aluminum Pinnacle 20
01Description 02Application 03Inquiry
Item No. HPA2020
Description 20'×20' (6×6m) Aluminum Pinnacle High Peak Pvc Partytent

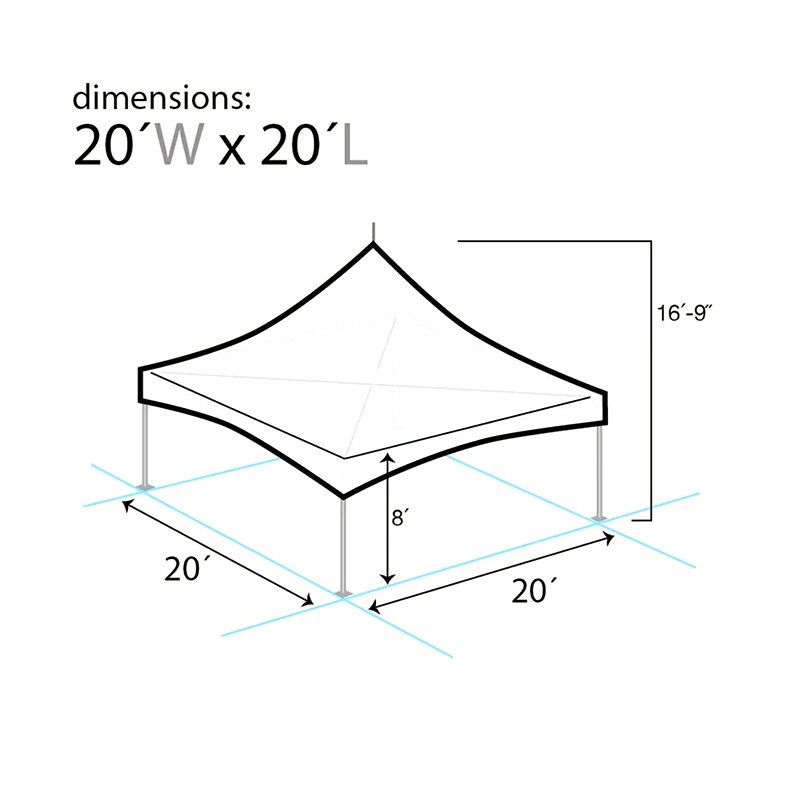

Specification Side height: 8' (2.44m)
Center height :16'9"(5.1m)
1˝ Ratchet Strap Assembly w/ D-ring × 4pcs
1.5˝Ratchet Strap Assembly (for the base plate)  × 4pcs
3/4˝× 20˝（19×508mm） Base Stake  × 4pcs
3/4˝× 24˝  (19×610mm） Ground Stake × 4pcs
 1. The Material of the  Frame (Alu. alloy construction)
Aluminum Anodized Finished 6061-t6
Pole and Beam
OD: 2.5"(63.5mm) Thickness 0.125"(3mm)
Center Pole :
2.26" (57.5mm) Thickness  0.125"(3mm)
2" ( 50.8mm ) Thickness 0.1"(2.5mm)
Alu. alloy connectors

2. The Material of Fabric :
The Thickness of Fabric: 0.5mm(+-0.02mm)
Weight of Fabric: Roof fabric(blackout) 580g/square meters , Fire resistant M2

3. Options
Blank Side Wall
Side Wall with a Window
Side Wall with Door
Carton Size 75×57×22cm
38×38×22cm
284×23×13cm
245×23×19cm
4GP 138
Cbm 0.420
